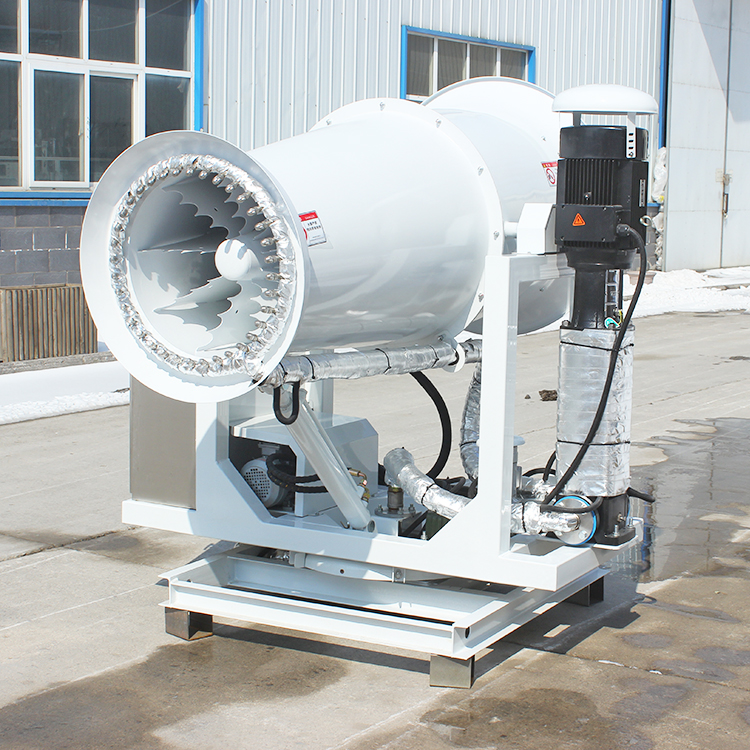

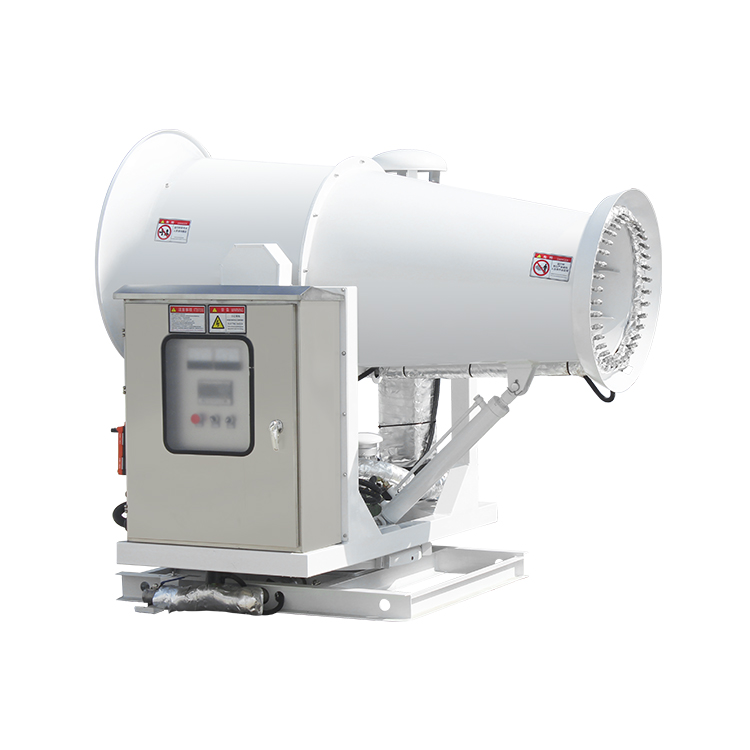

60 meters automatic fog cannon, outsourcing thermal insulation film, can be used in winter, widely used in coal mine, chemical plants, road dust reduction, pesticide spraying, construction site demolition and other places.
Email: [email protected]
60 meters automatic fog cannon machine, outsourcing thermal insulation film, can be used in winter, widely used in coal mine, chemical plants, road dust reduction, pesticide spraying, construction site demolition and other places.

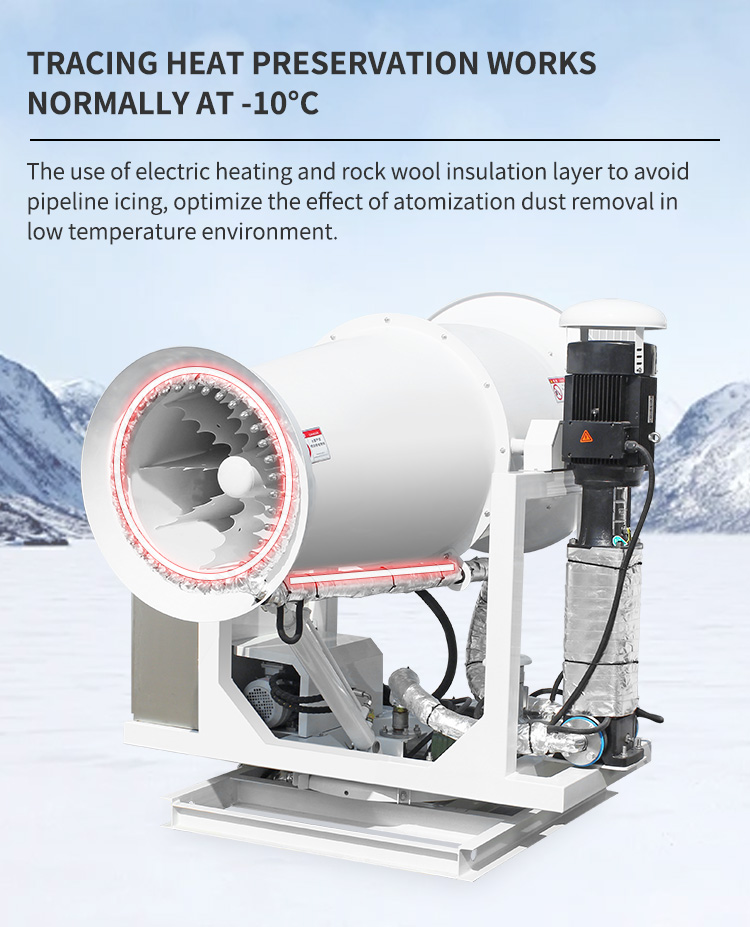

Note: In winter, when the fog cannon is not in use, you need to drain the residual liquid in the equipment, to prevent the principle of thermal expansion and contraction, freezing equipment devices, and prolonged immersion, so that the equipment rust.
| Model | Quiet Wind Range
(m) |
Fan power
(kw) |
Water pump power
(kw) |
Total
power (kw) |
Pitch angle
(conventional) |
Rotation angle | Nozzles17 | Noise at 20 meters (dB) | Weight
(kg) |
Size | ||
| Split | Box | Standard | Center
(optional) |
(mm) | ||||||||
| ZT-20 | 20-25 | 2-1.5 | 2-1.1 | ≤3 | -5-35° | -10-40° | 0-350° | single12 | 11 | ≤60 | 260 | 1300*720*1642 |
| ZT-30 | 25-35 | 2-2.2 | 2-1.5 | ≤5 | -5-35° | -10-40° | 0-350° | single12 | 11 | ≤65 | 290 | 1300*700*1700 |
| ZT-35 | 35-40 | 2-3 | 2-2.2 | ≤6 | -5-35° | -10-40° | 0-350° | single12 | 11 | ≤65 | 330 | 1300*800*1865 |
| ZT-40 | 40-50 | 2-7.5 | 2-3 | ≤13 | -5-35° | -5-35° | 0-350° | single24 | 15 | ≤68 | 440 | 1663*1300*2078 |
| ZT-50 | 55-60 | 2-11 | 2-3 | ≤16 | -5-35° | -5-35° | 0-350° | single24 | 15 | ≤68 | 530 | 1725*1555*1657 |

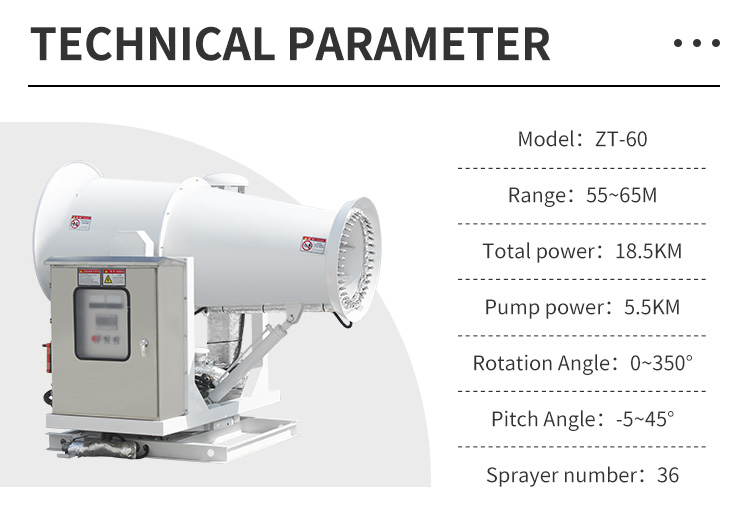

| ZT-60 | 60-70 | 2-15 | 2-4 | ≤21 | -5-35° | -5-35° | 0-350° | single30 | 15 | ≤75 | 640 | 1930*1300*2181 |
| ZT-70 | 70-80 | 2-22 | 2-5.5 | ≤30 | -5-35° | -5-35° | 0-350° | single36 | 31 | ≤75 | 850 | 2190*1750*1720 |
| ZT-80 | 75-85 | 2-30 | 2-5.5 | ≤37 | -5-35° | -5-35° | 0-350° | single46 | 31 | ≤80 | 960 | 2500*2040*2111 |
| ZT-90 | 80-90 | 4-37 | 2-7.5 | ≤46 | -5-45° | -5-45° | 0-350° | Double70 | 31 | ≤75 | 1580 | 2580*1990*2462 |
| ZT-100 | 90-100 | 4-45 | 2-7.5 | ≤55 | -5-45° | -5-45° | 0-350° | Double70 | 31 | ≤80 | 1610 | 2985*2170*2229 |
| ZT-110 | 100-110 | 4-55 | 2-11 | ≤68 | -5-45° | -5~35° | 0-350° | Double100 | 31 | ≤80 | 1850 | 2990*2170*2300 |
| ZT-120 | 100-120 | 4-75 | 2-15 | ≤92 | -5-45° | -5~35° | 0-350° | Double110 | 31 | ≤85 | 2350 | 3336*2480*2636 |
| ZT-140 | 110-140 | 4-75 | 2-18.5 | ≤96 | -5-45° | -5~35° | 0-350° | Double120 | 31 | ≤90 | 2850 | 3400*2480*2636 |
