Used in coal mines, urban demolition sites, metallurgical and steel enterprises, mining areas, coal chemical enterprises, cement plants, thermal power plants, open-air storage plants for materials and mineral products, concrete treatment plants, garbage storage yards, garbage incineration plants, sand factories, dry material warehouses, open-air explosion and heavy dust areas.
Email: [email protected]

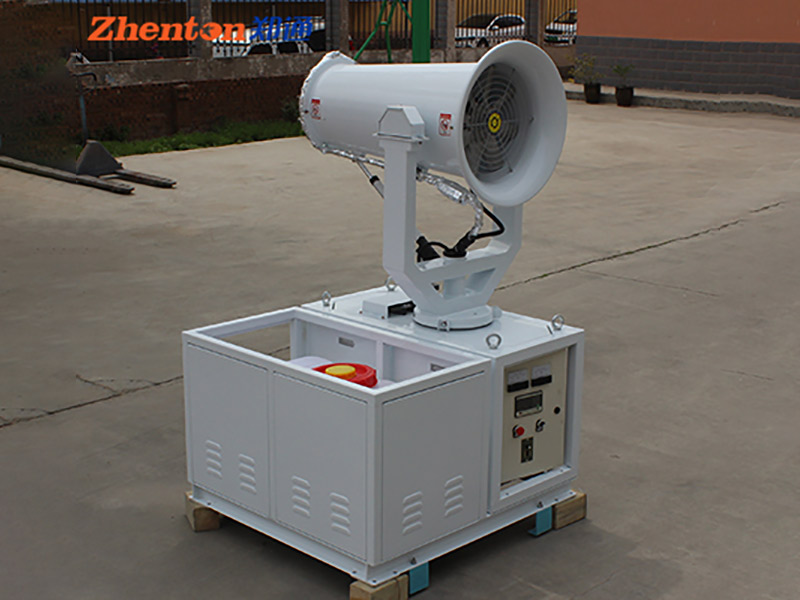

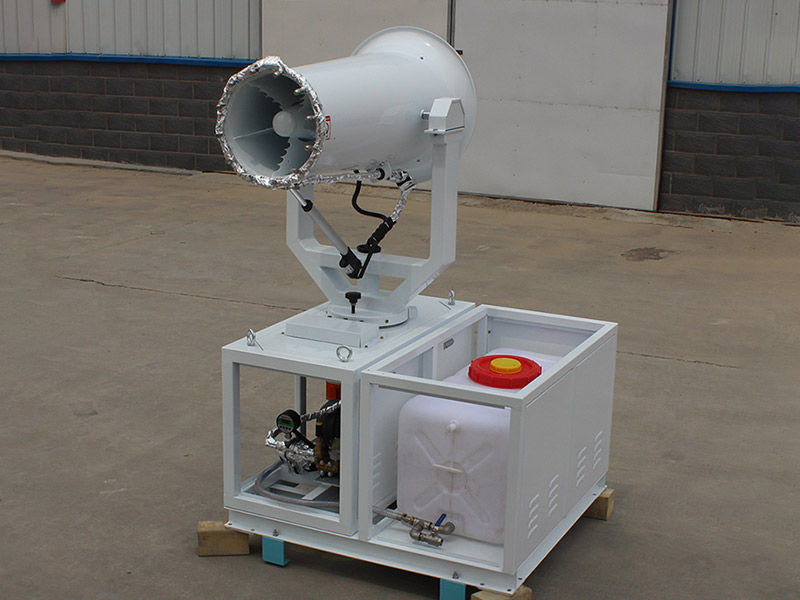

The fog cannon machine is based on the principle of air delivery, using high-pressure water pumps and micro atomization nozzles to atomize water, and then using axial flow fans to transport the water mist to a longer distance. The rotating mechanism makes the coverage area of water mist larger, allowing water mist and dust to condense and fall more fully, thereby achieving the goal of dust reduction.
Fog cannon machine has a long range and a large coverage area, accelerating dust precipitation and suppressing dust diffusion; Flexible control mode and convenient startup; Reasonable structure, stable operation, low noise, and high work efficiency.
Used in coal mines, urban demolition sites, metallurgical and steel enterprises, mining areas, coal chemical enterprises, cement plants, thermal power plants, open-air storage plants for materials and mineral products, concrete treatment plants, garbage storage yards, garbage incineration plants, sand factories, dry material warehouses, open-air explosion and heavy dust areas.
| Model | Quiet Wind Range (m) | Water mist particle diameter (μm) | Coverage area (㎡) | Power (kw) | Pitch angle | Rotation angle | Number of nozzles | Noise at 20 meters (dB) | Weight (kg) |
| ZT-20 | 20 | 30-150 | ≤1900 | ≤3 | -5~35° | 0~340° | 12 | ≤60 | 260 |
| ZT-30 | 30 | 30-150 | ≤2700 | ≤5 | -5~35° | 0~340° | 12 | ≤65 | 290 |
| ZT-40 | 40 | 30-150 | ≤4800 | ≤13 | -5~35° | 0~340° | 24 | ≤68 | 440 |
| ZT-50 | 50 | 30-150 | ≤7600 | ≤16 | -5~35° | 0~340° | 24 | ≤68 | 530 |
| ZT-60 | 60 | 30-150 | ≤10900 | ≤21 | -5~35° | 0~340° | 30 | ≤75 | 640 |
| ZT-70 | 70 | 30-150 | ≤14900 | ≤30 | -5~35° | 0~340° | 36 | ≤75 | 850 |
| ZT-80 | 80 | 30-150 | ≤19500 | ≤37 | -5~35° | 0~340° | 46 | ≤80 | 960 |
| ZT-90 | 90 | 30-150 | ≤24700 | ≤46 | -5~35° | 0~340° | 70 | ≤80 | 1580 |
| ZT-100 | 100 | 30-150 | ≤30500 | ≤55 | -5~35° | 0~340° | 70 | ≤80 | 1610 |
| ZT-110 | 110 | 30-150 | ≤36900 | ≤68 | -5~35° | 0~340° | 100 | ≤80 | 1850 |
| ZT-120 | 120 | 30-150 | ≤43900 | ≤92 | -5~35° | 0~340° | 110 | ≤85 | 2350 |
| ZT-140 | 140 | 30-150 | ≤59800 | ≤96 | -5~35° | 0~340° | 120 | ≤90 | 2850 |
Note: The above parameters are for reference only, and the actual product shall prevail.
If the above requirements cannot meet your needs, our company can customize it according to your requirements.
