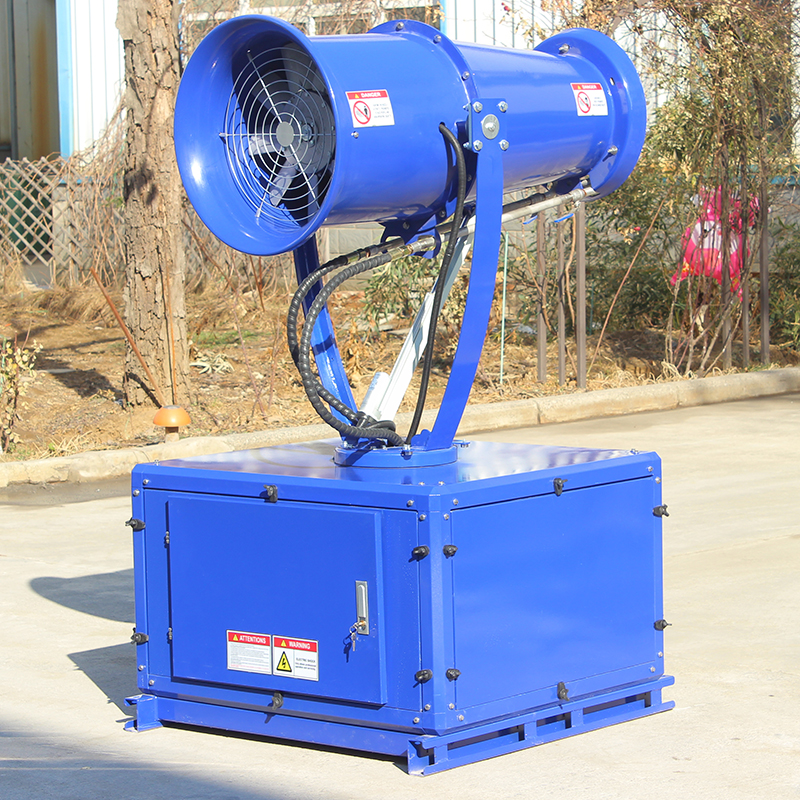

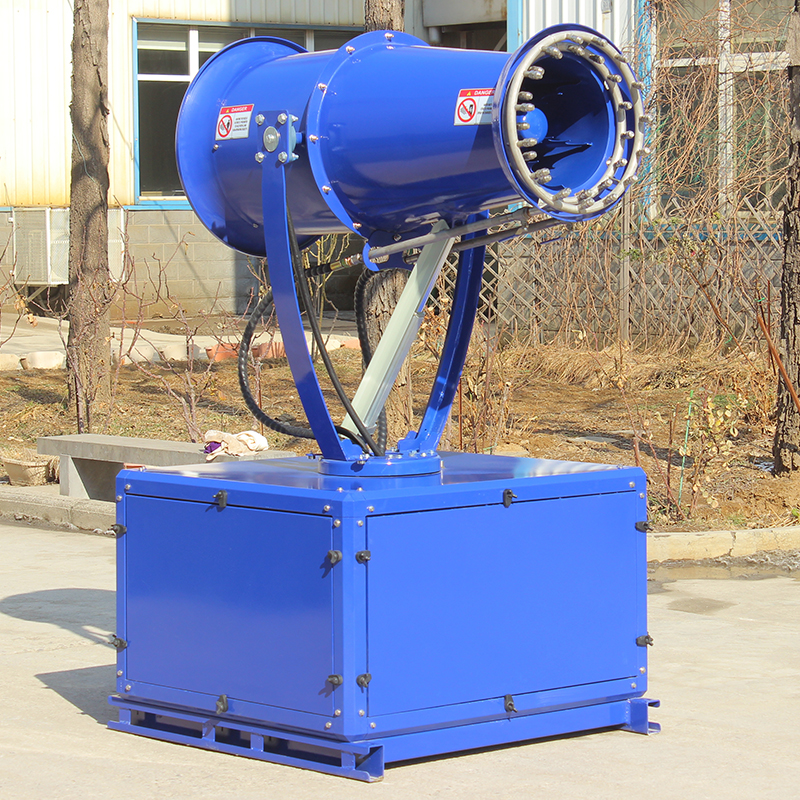

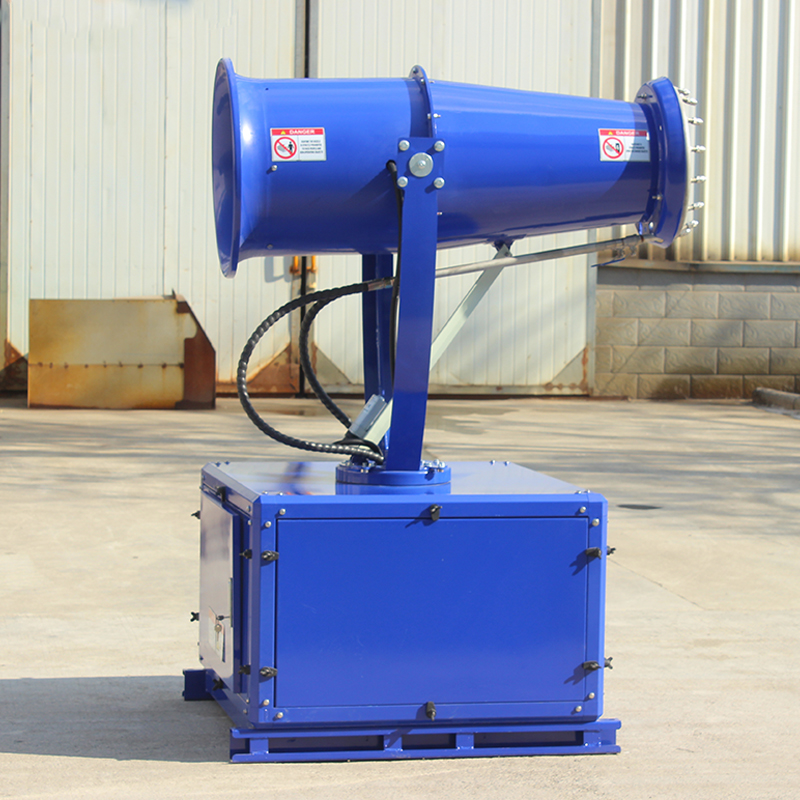

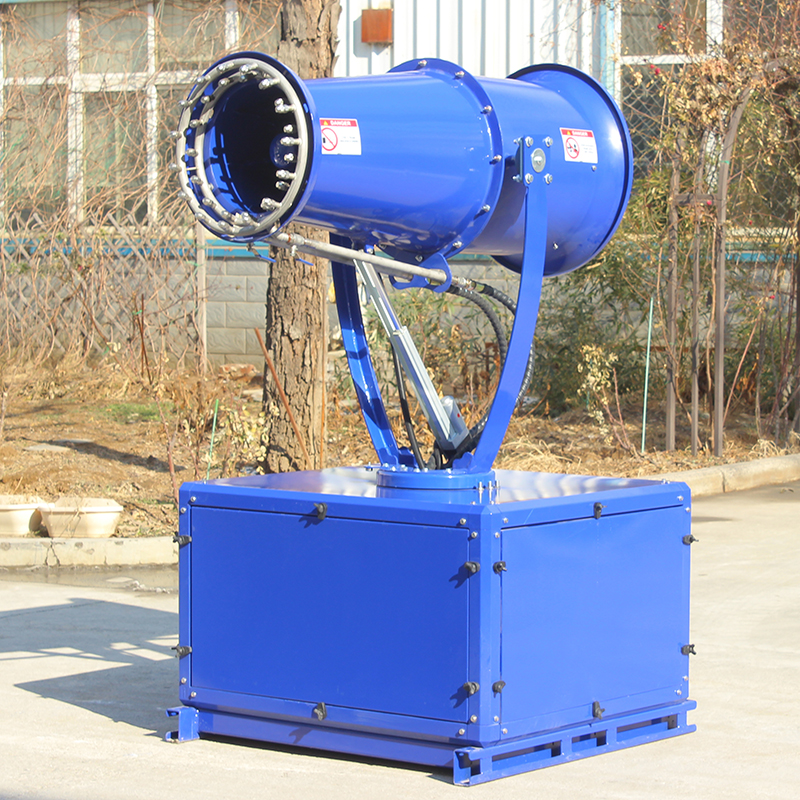

COOLING FOG CANNON ZT-30

COOLING FOG CANNON ZT-30

The 30m cooling fog cannon atomizes water finely through a high-pressure system, and then uses a powerful fan to spray the water mist up to 30 meters away, covering a wide range of areas, which can effectively wet-capture the dust and reduce the temperature. The working principle of this equipment is to convert water into water mist through wind power to ensure the atomization effect of the jet, thus reducing water consumption and improving the collision frequency with dust to achieve the purpose of dust reduction, applicable to summer playgrounds, scenic spots and other places.

Model	Quiet Wind Range（m）	Water mist particle diameter（μm）	Coverage area（㎡）	Power （kw）	Pitch angle	Rotation angle	Number of nozzles	Noise at 20 meters （dB）	Weight（kg）
ZT-20	20	30-150	≤1900	≤3	-5~35°	0~340°	12	≤60	260
ZT-30	30	30-150	≤2700	≤5	-5~35°	0~340°	12	≤65	290
ZT-40	40	30-150	≤4800	≤13	-5~35°	0~340°	24	≤68	440
ZT-50	50	30-150	≤7600	≤16	-5~35°	0~340°	24	≤68	530
ZT-60	60	30-150	≤10900	≤21	-5~35°	0~340°	30	≤75	640
ZT-70	70	30-150	≤14900	≤30	-5~35°	0~340°	36	≤75	850
ZT-80	80	30-150	≤19500	≤37	-5~35°	0~340°	46	≤80	960
ZT-90	90	30-150	≤24700	≤46	-5~35°	0~340°	70	≤80	1580
ZT-100	100	30-150	≤30500	≤55	-5~35°	0~340°	70	≤80	1610
ZT-110	110	30-150	≤36900	≤68	-5~35°	0~340°	100	≤80	1850
ZT-120	120	30-150	≤43900	≤92	-5~35°	0~340°	110	≤85	2350
ZT-140	140	30-150	≤59800	≤96	-5~35°	0~340°	120	≤90	2850
