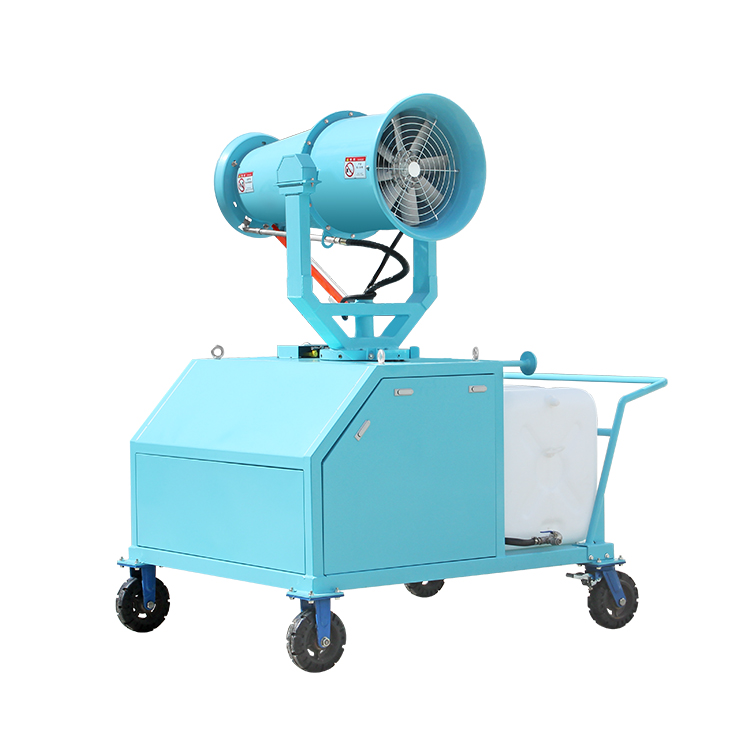

COOLING HAND-PUSH FOG CANNON MACHINE ZT-30

COOLING HAND-PUSH FOG CANNON MACHINE ZT-30

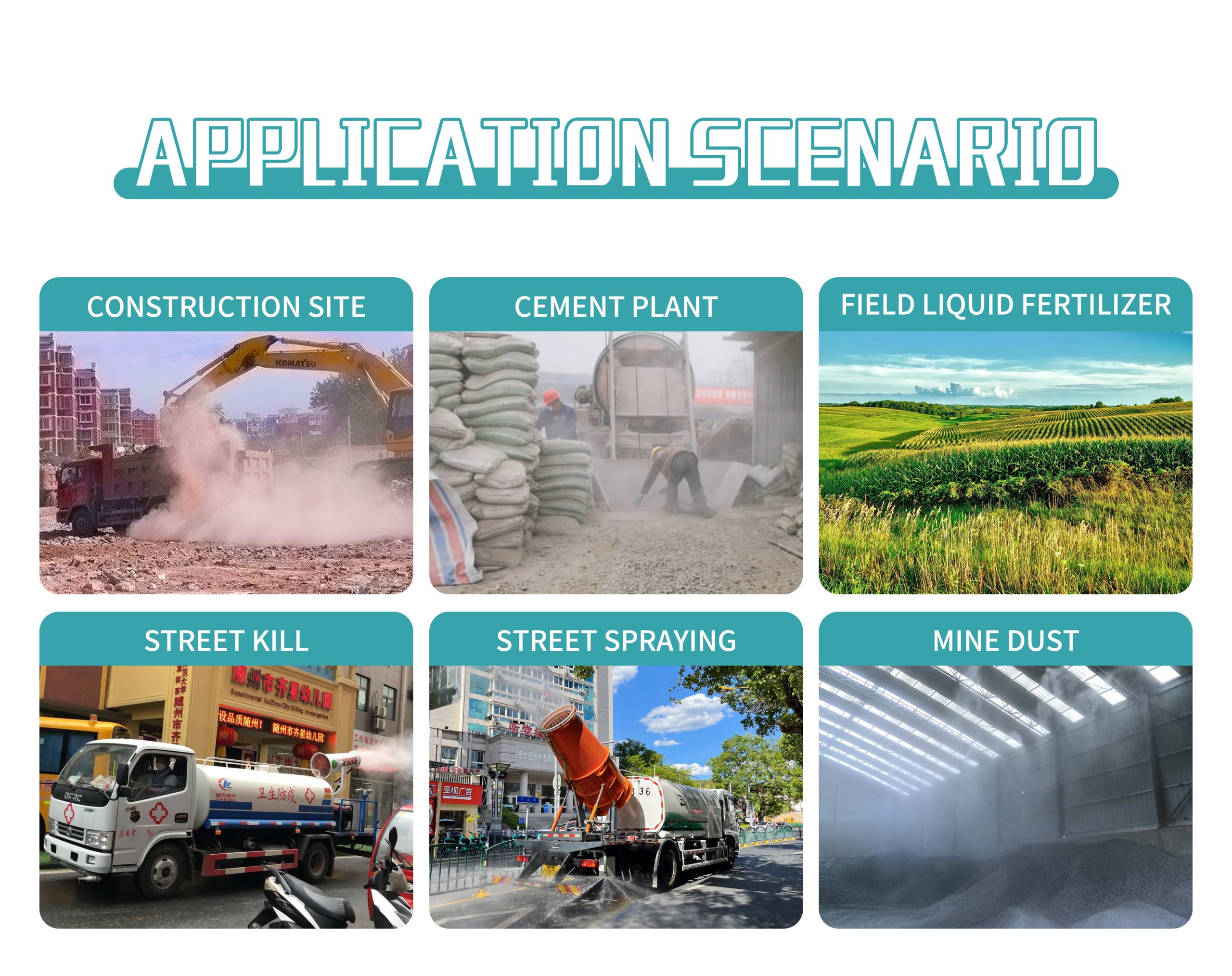

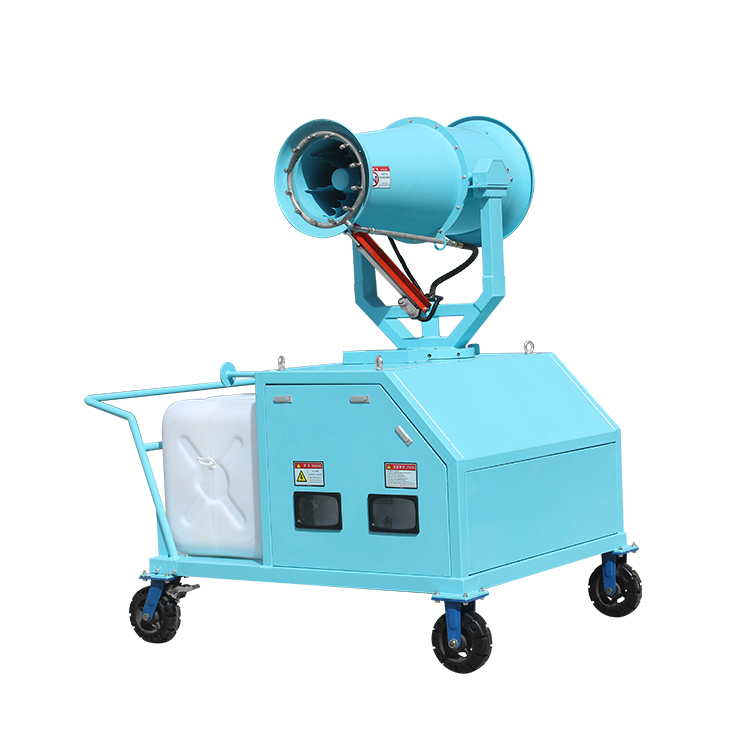

30 meters hand-push fog cannon machine, with cooling dust, killing epidemic prevention, deodorization and other roles, widely used in coal mine, chemical plants, roads, construction site demolition, scenic spots and other places.

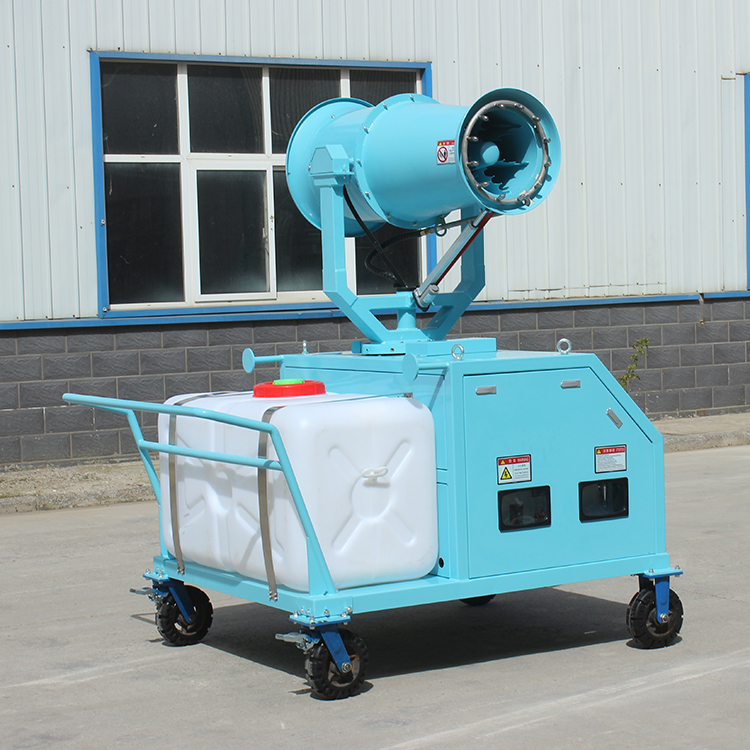

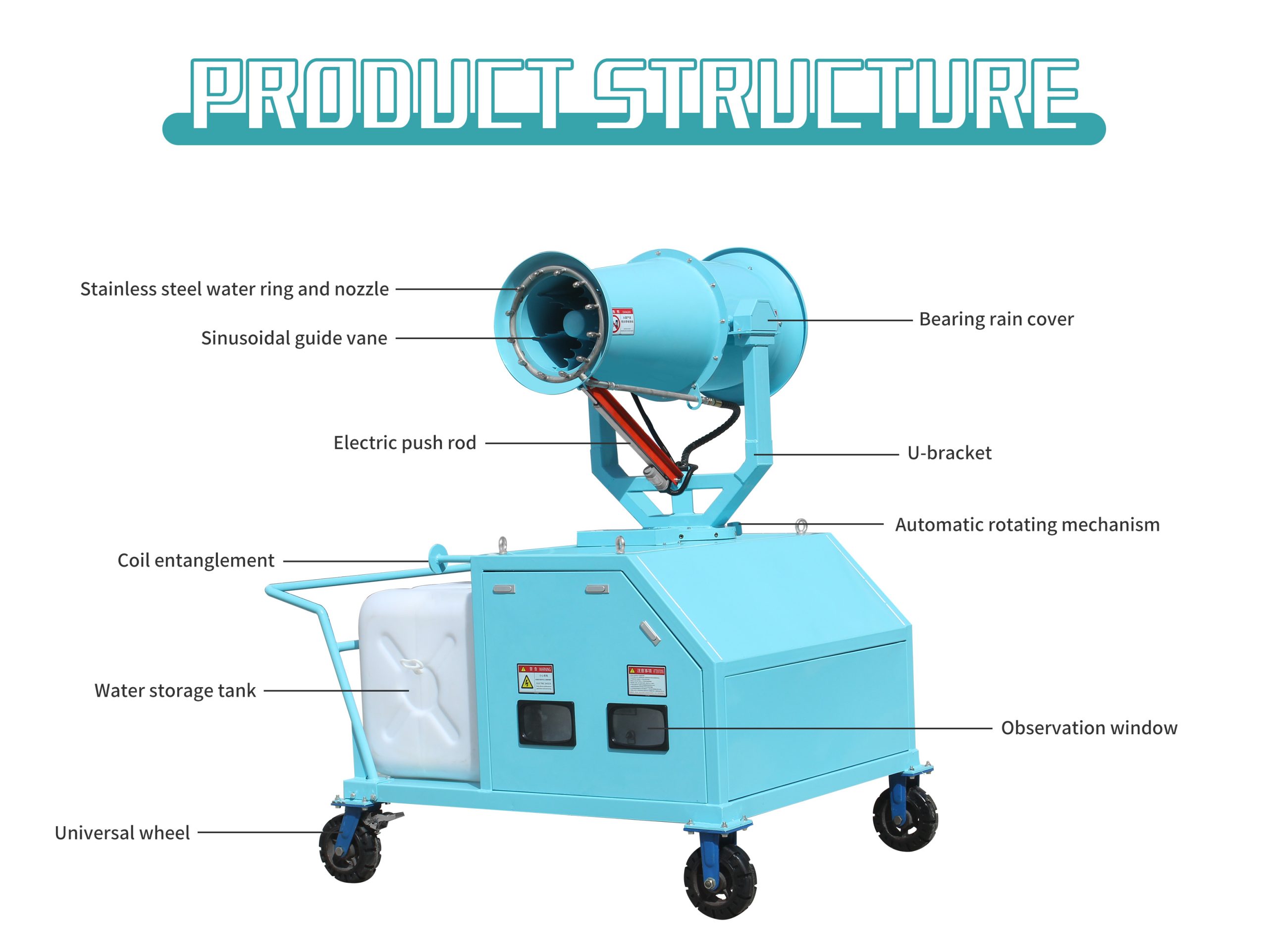

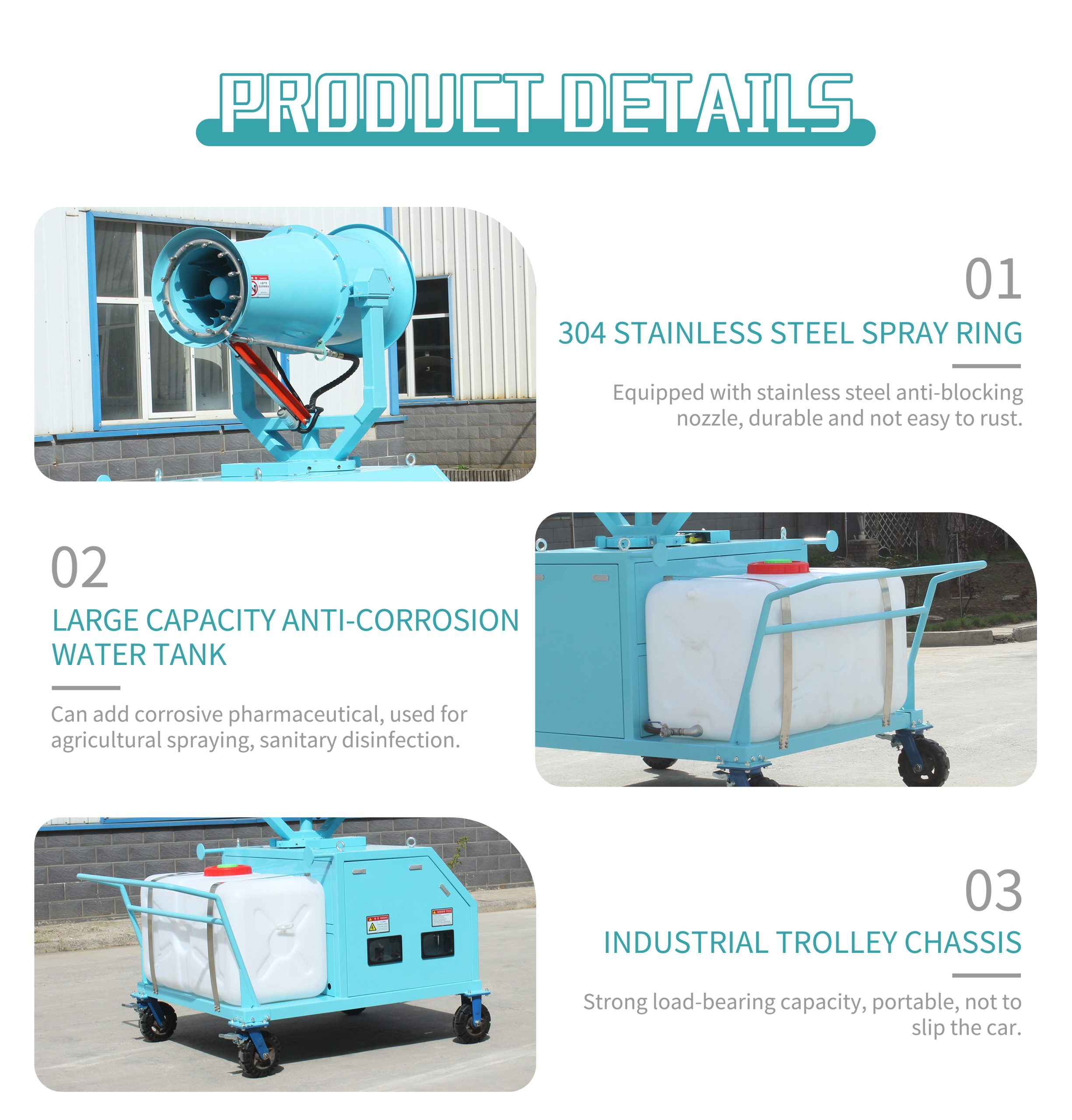

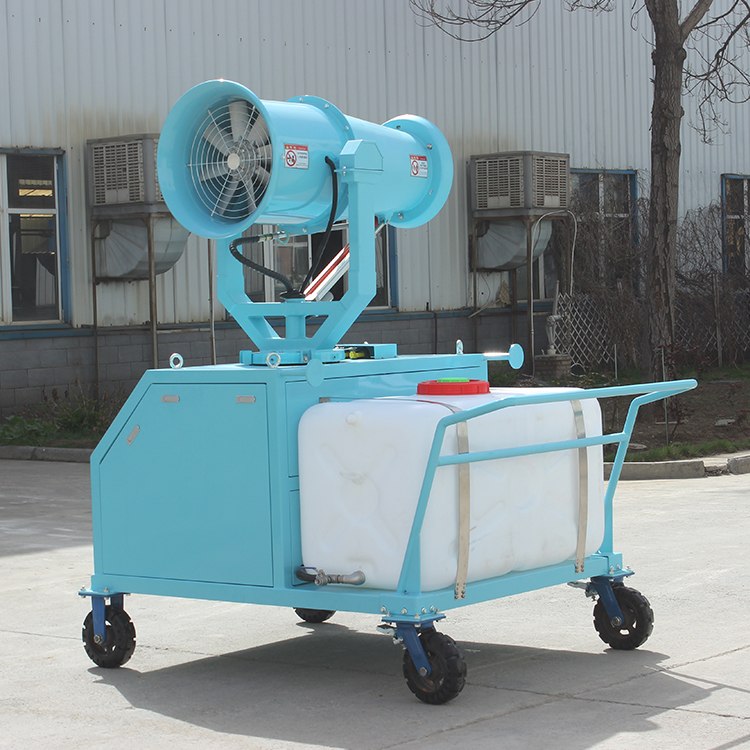

With its own water tank, with mobile casters, it can work flexibly and accurately at a fixed point, single-ring stainless steel nozzle, pitching with electric actuator, to ensure smooth operation of the equipment, built-in double-layer stainless steel electronic control box, with butterfly buckle pressure, dust and splash, easy to dismantle and maintenance.

Model	Quiet Wind Range（m）	Water mist particle diameter（μm）	Coverage area（㎡）	Power （kw）	Pitch angle	Rotation angle	Number of nozzles	Noise at 20 meters （dB）	Weight（kg）
ZT-20	20	30-150	≤1900	≤3	-5~35°	0~340°	12	≤60	260

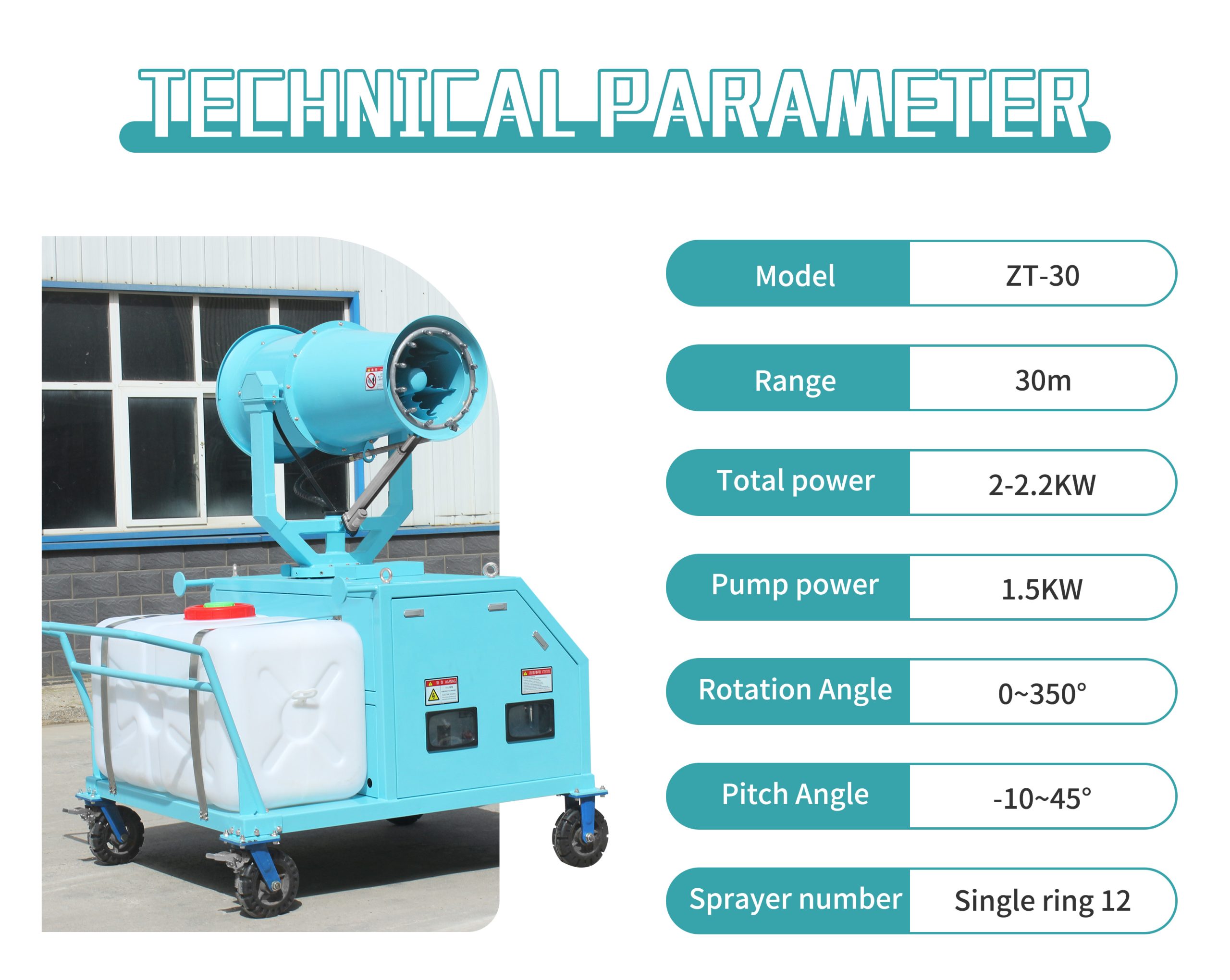

ZT-30	30	30-150	≤2700	≤5	-5~35°	0~340°	12	≤65	290
ZT-40	40	30-150	≤4800	≤13	-5~35°	0~340°	24	≤68	440
ZT-50	50	30-150	≤7600	≤16	-5~35°	0~340°	24	≤68	530
ZT-60	60	30-150	≤10900	≤21	-5~35°	0~340°	30	≤75	640
ZT-70	70	30-150	≤14900	≤30	-5~35°	0~340°	36	≤75	850
ZT-80	80	30-150	≤19500	≤37	-5~35°	0~340°	46	≤80	960
ZT-90	90	30-150	≤24700	≤46	-5~35°	0~340°	70	≤80	1580
ZT-100	100	30-150	≤30500	≤55	-5~35°	0~340°	70	≤80	1610
ZT-110	110	30-150	≤36900	≤68	-5~35°	0~340°	100	≤80	1850
ZT-120	120	30-150	≤43900	≤92	-5~35°	0~340°	110	≤85	2350
ZT-140	140	30-150	≤59800	≤96	-5~35°	0~340°	120	≤90	2850
