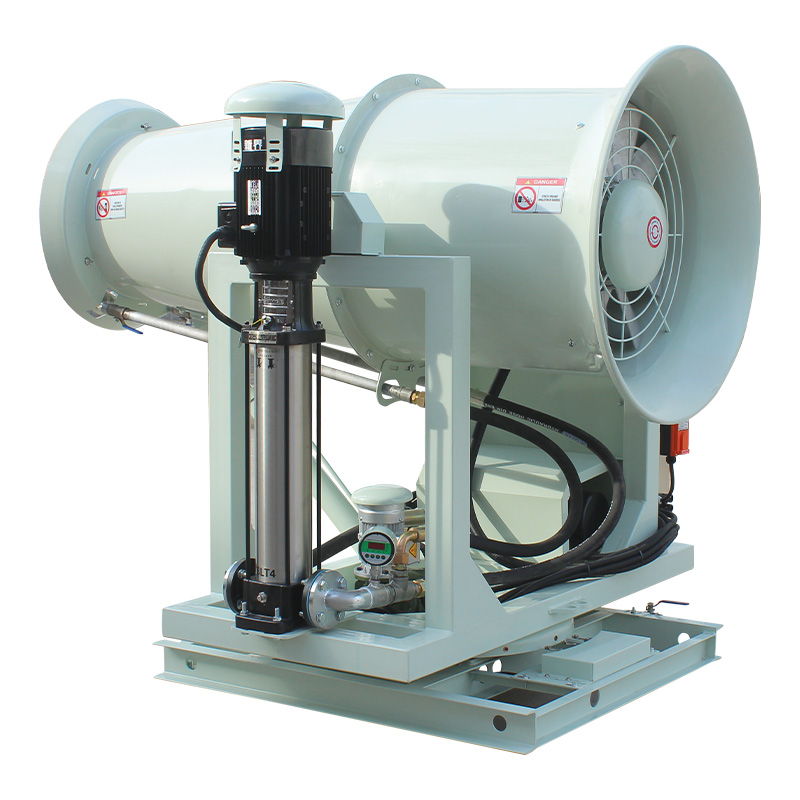

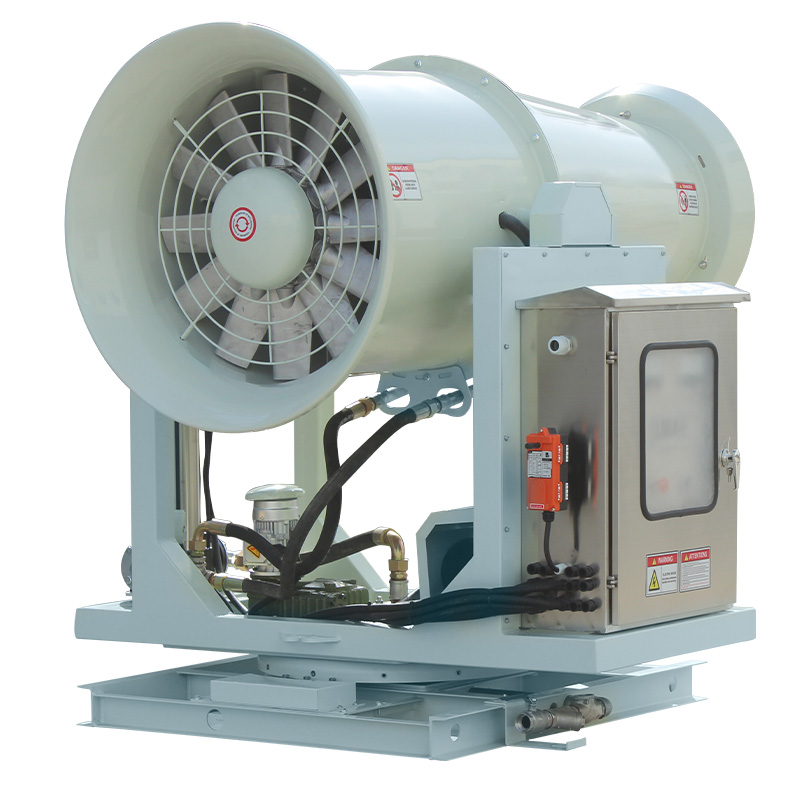

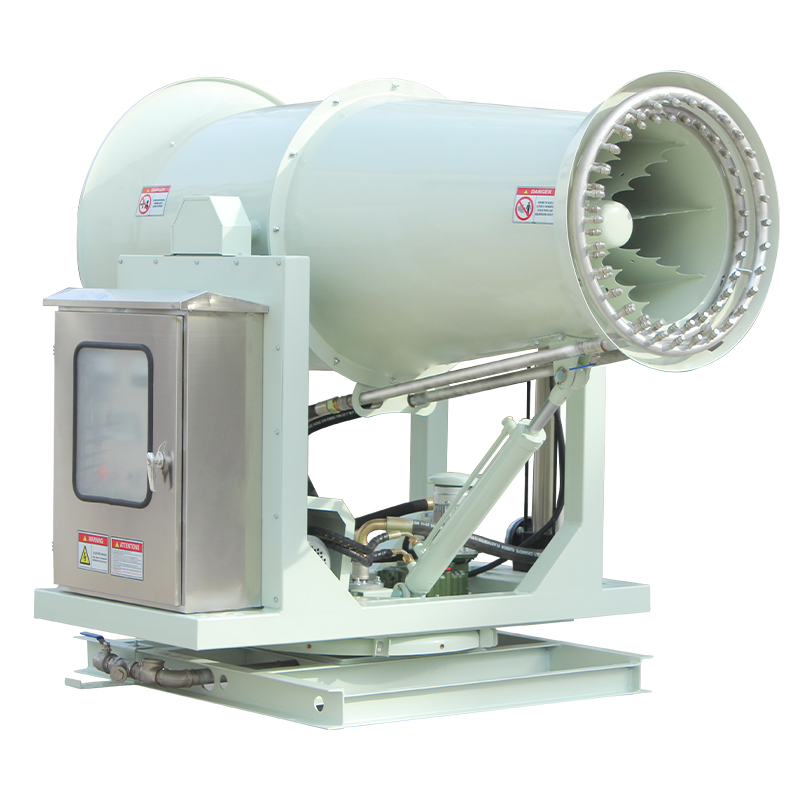

COOLING SPLIT TYPE FOG CANNON ZT-60

COOLING SPLIT TYPE FOG CANNON ZT-60

The 60 meter split fog cannon machine is an effective cooling device that reduces the ambient temperature by spraying tiny water mist particles and provides a comfortable environmental experience in different occasions. Its cooling effect is affected by environmental conditions such as ambient humidity, temperature and wind speed. The cooling effect is especially significant in dry and hot climatic conditions. In addition to the cooling function, the fog cannon machine also has multiple effects such as humidification, air purification, energy saving and consumption reduction, and is widely used in a variety of outdoor and indoor places. With the progress of technology and environmental management awareness, fog cannon machine will play a broader role in the field of environmental management in the future.





Model	Quiet Wind Range（m）	Water mist particle diameter（μm）	Coverage area（㎡）	Power （kw）	Pitch angle	Rotation angle	Number of nozzles	Noise at 20 meters （dB）	Weight（kg）
ZT-20	20	30-150	≤1900	≤3	-5~35°	0~340°	12	≤60	260
ZT-30	30	30-150	≤2700	≤5	-5~35°	0~340°	12	≤65	290
ZT-40	40	30-150	≤4800	≤13	-5~35°	0~340°	24	≤68	440
ZT-50	50	30-150	≤7600	≤16	-5~35°	0~340°	24	≤68	530
ZT-60	60	30-150	≤10900	≤21	-5~35°	0~340°	30	≤75	640
ZT-70	70	30-150	≤14900	≤30	-5~35°	0~340°	36	≤75	850
ZT-80	80	30-150	≤19500	≤37	-5~35°	0~340°	46	≤80	960
ZT-90	90	30-150	≤24700	≤46	-5~35°	0~340°	70	≤80	1580
ZT-100	100	30-150	≤30500	≤55	-5~35°	0~340°	70	≤80	1610
ZT-110	110	30-150	≤36900	≤68	-5~35°	0~340°	100	≤80	1850
ZT-120	120	30-150	≤43900	≤92	-5~35°	0~340°	110	≤85	2350
ZT-140	140	30-150	≤59800	≤96	-5~35°	0~340°	120	≤90	2850
