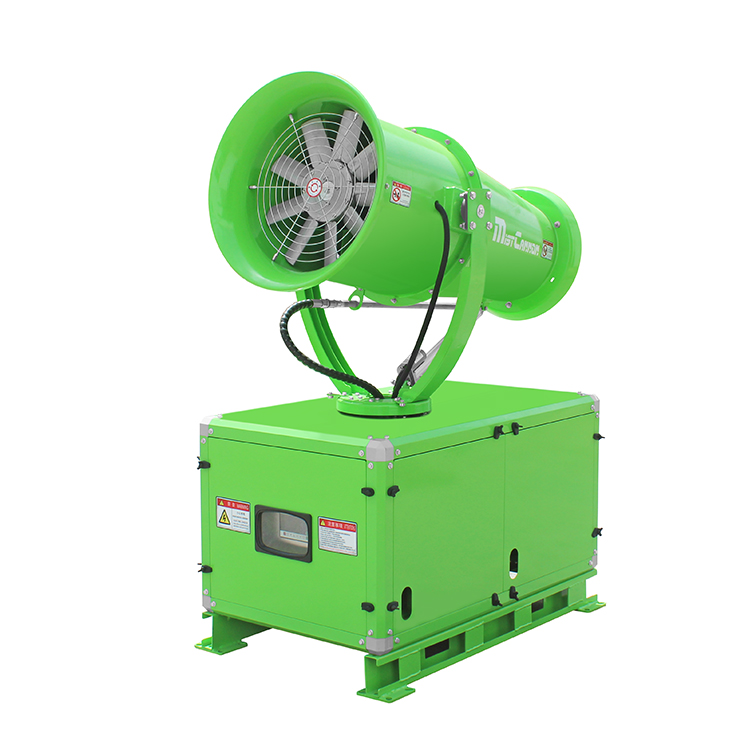

DEODORIZATION ANTISEPTIC AND EPIDEMIC PREVENTION FOG CANNON ZT-40

DEODORIZATION ANTISEPTIC AND EPIDEMIC PREVENTION FOG CANNON ZT-40

Antiseptic and epidemic prevention fog cannon is widely used in a variety of need to disinfect the occasion, such as hospitals, schools, factories, warehouses and other places, to provide comprehensive, fast, efficient epidemic prevention and disinfection services.

The colour choice of the equipment can be divided and matched according to the customer’s demand, aluminium tee box type structure, dustproof and anti-splash, to protect the internal zero device of the box, three-phase electric voltage 220/380V, electric frequency 50/60hz, with the electric control box, to prevent the damage of the circuit due to the lack of items.

Model	Quiet Wind Range（m）	Water mist particle diameter（μm）	Coverage area（㎡）	Power （kw）	Pitch angle	Rotation angle	Number of nozzles	Noise at 20 meters （dB）	Weight（kg）
ZT-20	20	30-150	≤1900	≤3	-5~35°	0~340°	12	≤60	260
ZT-30	30	30-150	≤2700	≤5	-5~35°	0~340°	12	≤65	290
ZT-40	40	30-150	≤4800	≤13	-5~35°	0~340°	24	≤68	440
ZT-50	50	30-150	≤7600	≤16	-5~35°	0~340°	24	≤68	530
ZT-60	60	30-150	≤10900	≤21	-5~35°	0~340°	30	≤75	640
ZT-70	70	30-150	≤14900	≤30	-5~35°	0~340°	36	≤75	850
ZT-80	80	30-150	≤19500	≤37	-5~35°	0~340°	46	≤80	960
ZT-90	90	30-150	≤24700	≤46	-5~35°	0~340°	70	≤80	1580
ZT-100	100	30-150	≤30500	≤55	-5~35°	0~340°	70	≤80	1610
ZT-110	110	30-150	≤36900	≤68	-5~35°	0~340°	100	≤80	1850
ZT-120	120	30-150	≤43900	≤92	-5~35°	0~340°	110	≤85	2350
ZT-140	140	30-150	≤59800	≤96	-5~35°	0~340°	120	≤90	2850
