1. Deodorization, disinfection: apply to airports, stations, docks, highways, parks, squares and other public places for deodorization and large-scale disinfection, sterilization of health and epidemic prevention operations. 2. Agricultural and forestry diseases and insect pests: apply to trees, urban gardens, street trees and other tall trees for chemical spraying and other diseases and insect pests operations.
Email: [email protected]

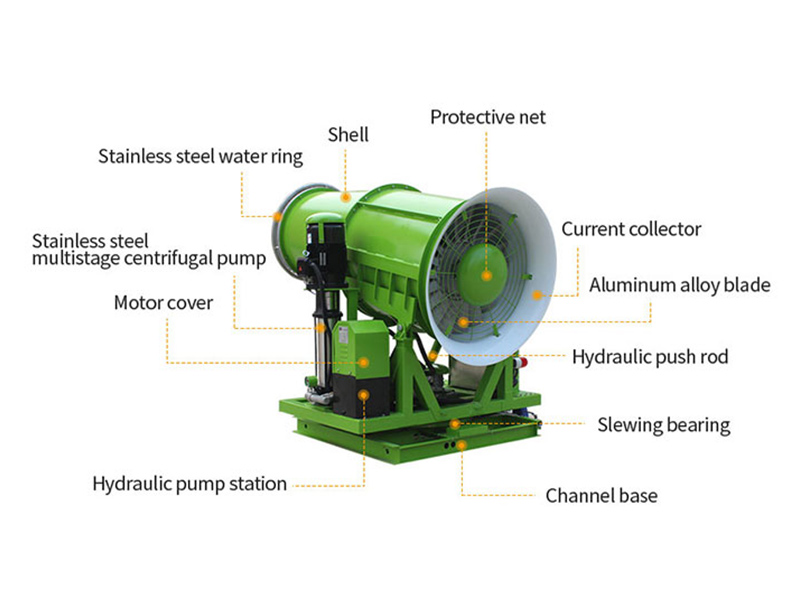

The fog cannon working principle is to use a high-pressure water pump and atomization module to atomize water, and then use a centrifugal fan to generate wind to spray the water mist out.
Water mist absorbs dust particles in the air, causing them to gain weight and naturally settle, thereby achieving the effects of dust removal, cooling, deodorization and air purification.
1. Deodorization, disinfection: apply to airports, stations, docks, highways, parks, squares and other public places for deodorization and large-scale disinfection, sterilization of health and epidemic prevention operations.
2. Agricultural and forestry diseases and insect pests: apply to trees, urban gardens, street trees and other tall trees for chemical spraying and other diseases and insect pests operations.
| Model | Quiet Wind Range (m) | Water mist particle diameter (μm) | Coverage area (㎡) | Power (kw) | Pitch angle | Rotation angle | Number of nozzles | Noise at 20 meters (dB) | Weight (kg) |
| ZT-20 | 20 | 30-150 | ≤1900 | ≤3 | -5~35° | 0~340° | 12 | ≤60 | 260 |
| ZT-30 | 30 | 30-150 | ≤2700 | ≤5 | -5~35° | 0~340° | 12 | ≤65 | 290 |
| ZT-40 | 40 | 30-150 | ≤4800 | ≤13 | -5~35° | 0~340° | 24 | ≤68 | 440 |
| ZT-50 | 50 | 30-150 | ≤7600 | ≤16 | -5~35° | 0~340° | 24 | ≤68 | 530 |
| ZT-60 | 60 | 30-150 | ≤10900 | ≤21 | -5~35° | 0~340° | 30 | ≤75 | 640 |
| ZT-70 | 70 | 30-150 | ≤14900 | ≤30 | -5~35° | 0~340° | 36 | ≤75 | 850 |
| ZT-80 | 80 | 30-150 | ≤19500 | ≤37 | -5~35° | 0~340° | 46 | ≤80 | 960 |
| ZT-90 | 90 | 30-150 | ≤24700 | ≤46 | -5~35° | 0~340° | 70 | ≤80 | 1580 |
| ZT-100 | 100 | 30-150 | ≤30500 | ≤55 | -5~35° | 0~340° | 70 | ≤80 | 1610 |
| ZT-110 | 110 | 30-150 | ≤36900 | ≤68 | -5~35° | 0~340° | 100 | ≤80 | 1850 |
| ZT-120 | 120 | 30-150 | ≤43900 | ≤92 | -5~35° | 0~340° | 110 | ≤85 | 2350 |
| ZT-140 | 140 | 30-150 | ≤59800 | ≤96 | -5~35° | 0~340° | 120 | ≤90 | 2850 |
Note: The above parameters are for reference only, and the actual product shall prevail.
If the above requirements cannot meet your needs, our company can customize it according to your requirements.
