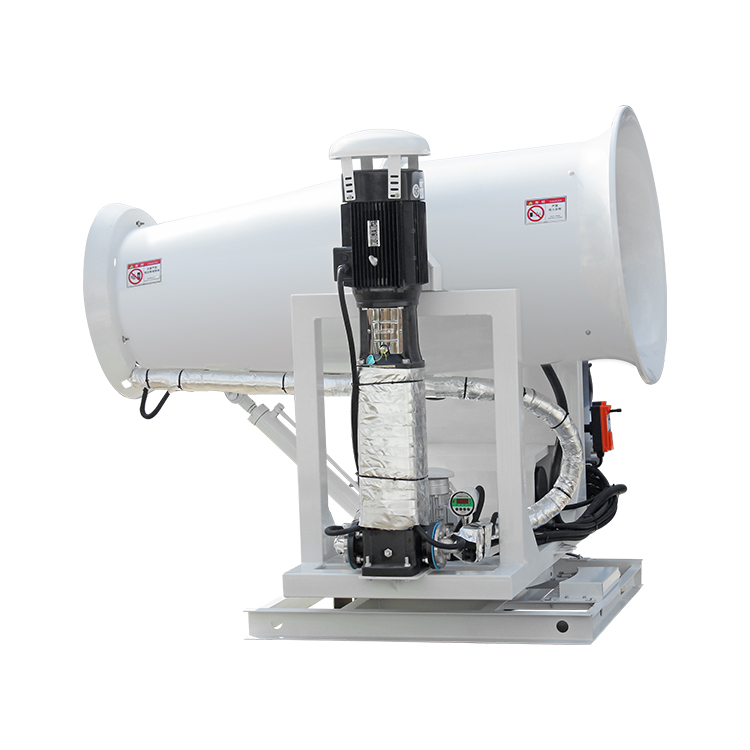

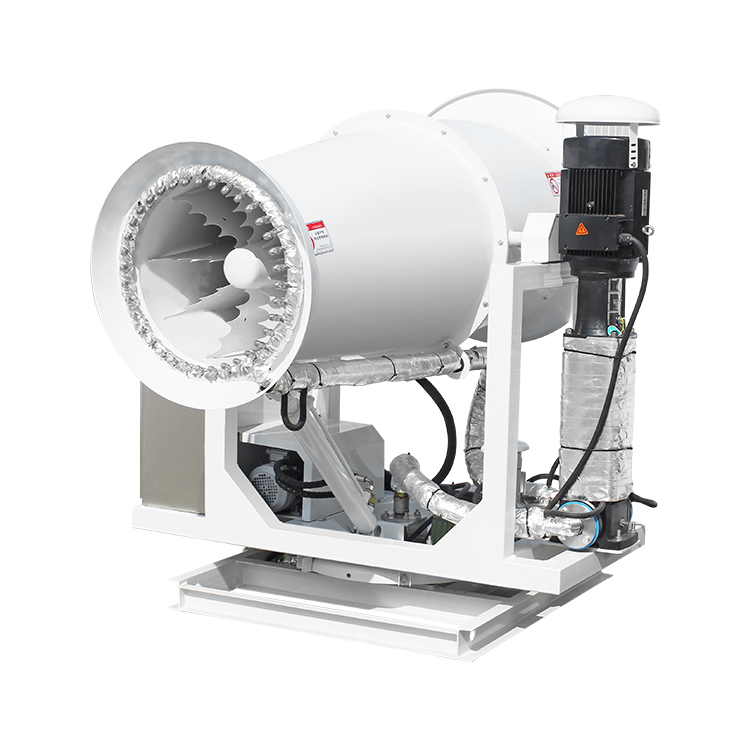

DEODORIZATION FOG CANNON ZT-60

DEODORIZATION FOG CANNON ZT-60

The 60m deodorising fog cannon is widely used in landfill plants, chemical plants, sewage plants and other places.
Stainless steel nozzle with 304 stainless steel water pipeline, can spray with diluted corrosive liquid, in the air molecules produce chemical reaction, so as to achieve the effect of deodorant. The electric control box is equipped with PLC editable program system, voltage/current protector, remote control, etc., to achieve automatic wide range of deodorant work.

Model	Quiet Wind Range（m）	Water mist particle diameter（μm）	Coverage area（㎡）	Power （kw）	Pitch angle	Rotation angle	Number of nozzles	Noise at 20 meters （dB）	Weight（kg）
ZT-20	20	30-150	≤1900	≤3	-5~35°	0~340°	12	≤60	260
ZT-30	30	30-150	≤2700	≤5	-5~35°	0~340°	12	≤65	290
ZT-40	40	30-150	≤4800	≤13	-5~35°	0~340°	24	≤68	440
ZT-50	50	30-150	≤7600	≤16	-5~35°	0~340°	24	≤68	530
ZT-60	60	30-150	≤10900	≤21	-5~35°	0~340°	30	≤75	640
ZT-70	70	30-150	≤14900	≤30	-5~35°	0~340°	36	≤75	850
ZT-80	80	30-150	≤19500	≤37	-5~35°	0~340°	46	≤80	960
ZT-90	90	30-150	≤24700	≤46	-5~35°	0~340°	70	≤80	1580
ZT-100	100	30-150	≤30500	≤55	-5~35°	0~340°	70	≤80	1610
ZT-110	110	30-150	≤36900	≤68	-5~35°	0~340°	100	≤80	1850
ZT-120	120	30-150	≤43900	≤92	-5~35°	0~340°	110	≤85	2350
ZT-140	140	30-150	≤59800	≤96	-5~35°	0~340°	120	≤90	2850
