DEODORIZATION FOG CAQNNON MACHINE ZT-30


Dust control fog cannon machine,widely used in coal mine, chemical plant, road dust reduction, pesticide spraying, construction site demolition and other sites.

Email: [email protected]


Product detail

DEODORIZATION FOG CAQNNON MACHINE ZT-30

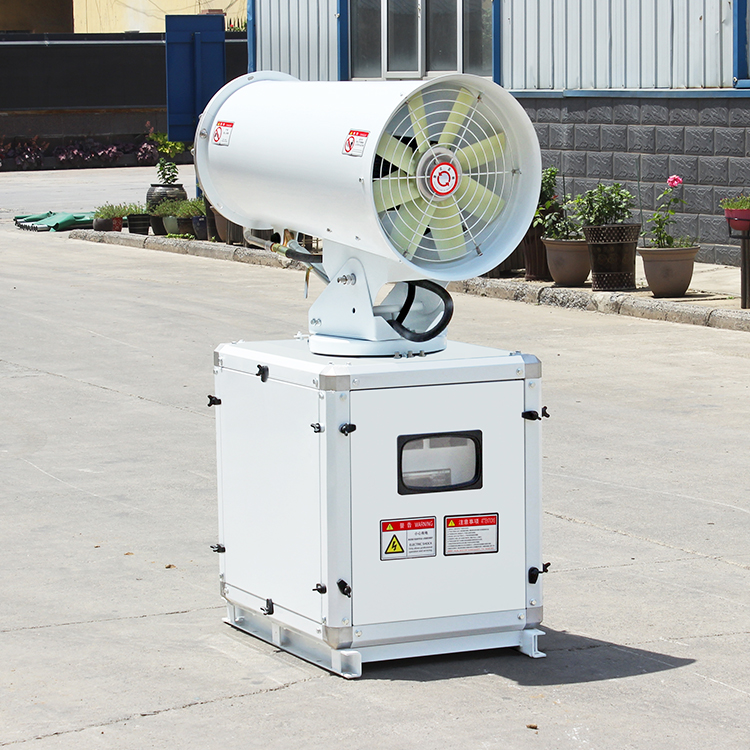

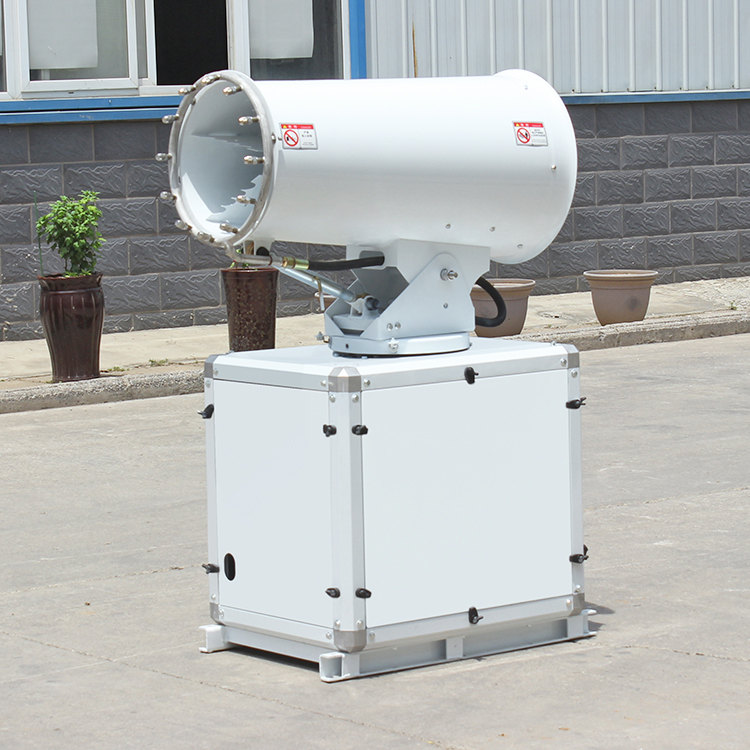

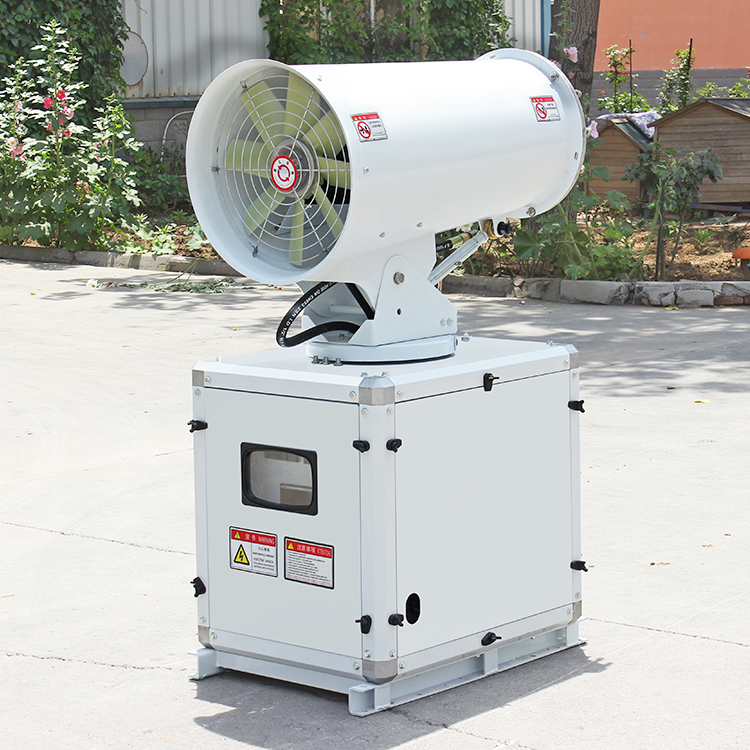

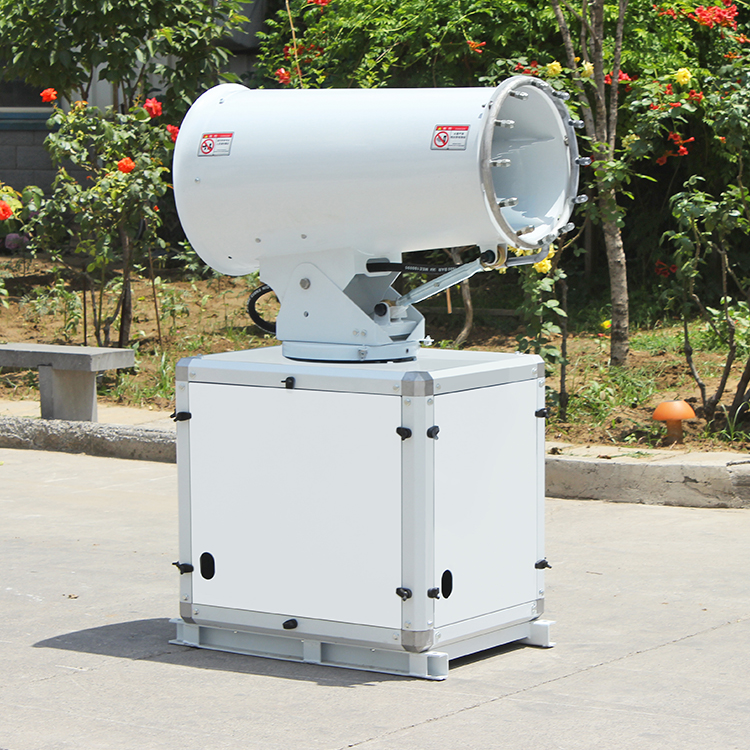

Deodorization fog cannon machine, the entire machine single ring with a total of 12 spray nozzles, with water pumps and fan motors, static wind range can reach 25-35 meters, pitch using electric push rod, can reach -5-45 degrees of pitch angle, left and right rotation using a vortex pump, can be achieved by 0-350 degrees of the rotating angle, aluminum tee box-type structure, dust and splash-proof, to protect the box parts.

Widely used in coal mine, chemical plant, road dust reduction, pesticide spraying, construction site demolition and other sites.

DEODORIZATION FOG CAQNNON MACHINE ZT-30 DEODORIZATION FOG CAQNNON MACHINE ZT-30 DEODORIZATION FOG CAQNNON MACHINE ZT-30 DEODORIZATION FOG CAQNNON MACHINE ZT-30

Model Quiet Wind Range(m) Water mist particle diameter(μm) Coverage area(㎡) Power

(kw)

Pitch angle Rotation angle Number of nozzles Noise at 20 meters (dB) Weight(kg)
ZT-20 20 30-150 ≤1900 ≤3 -5~35° 0~340° 12 ≤60 260
ZT-30 30 30-150 ≤2700 ≤5 -5~35° 0~340° 12 ≤65 290
ZT-40 40 30-150 ≤4800 ≤13 -5~35° 0~340° 24 ≤68 440
ZT-50 50 30-150 ≤7600 ≤16 -5~35° 0~340° 24 ≤68 530
ZT-60 60 30-150 ≤10900 ≤21 -5~35° 0~340° 30 ≤75 640
ZT-70 70 30-150 ≤14900 ≤30 -5~35° 0~340° 36 ≤75 850
ZT-80 80 30-150 ≤19500 ≤37 -5~35° 0~340° 46 ≤80 960
ZT-90 90 30-150 ≤24700 ≤46 -5~35° 0~340° 70 ≤80 1580
ZT-100 100 30-150 ≤30500 ≤55 -5~35° 0~340° 70 ≤80 1610
ZT-110 110 30-150 ≤36900 ≤68 -5~35° 0~340° 100 ≤80 1850
ZT-120 120 30-150 ≤43900 ≤92 -5~35° 0~340° 110 ≤85 2350
ZT-140 140 30-150 ≤59800 ≤96 -5~35° 0~340° 120 ≤90 2850

DEODORIZATION FOG CAQNNON MACHINE ZT-30 DEODORIZATION FOG CAQNNON MACHINE ZT-30
