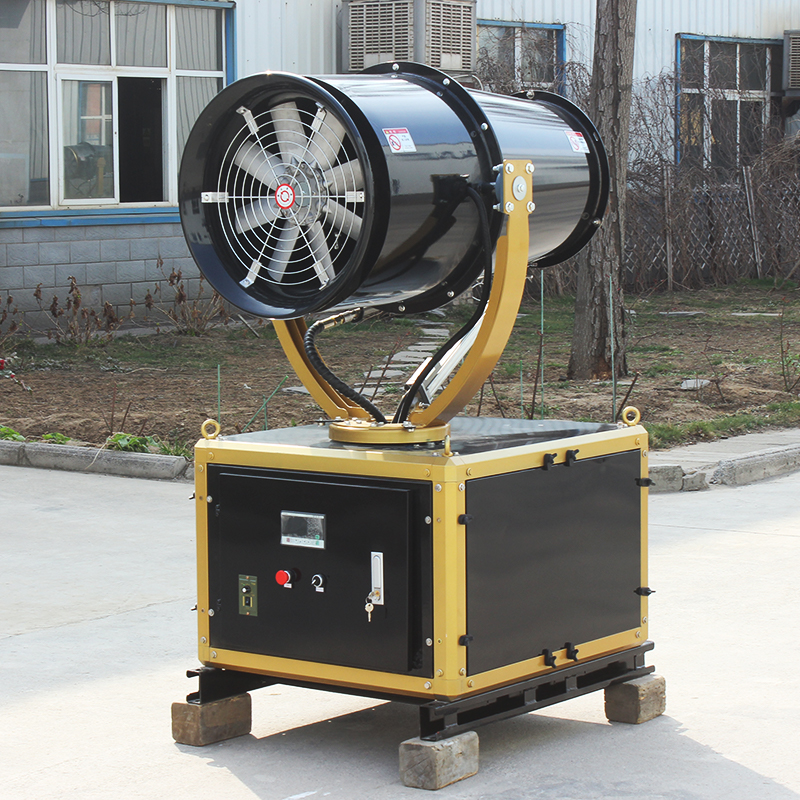

30 meters box type mist blower, can be loaded on sprinkler trucks, pickup trucks, tractors and other places with storage space.
Email: [email protected]
30 meters box type mist blower, can be loaded on sprinkler trucks, pickup trucks, tractors and other places with storage space.
Black and gold color scheme, beautiful and mysterious, single ring stainless steel nozzle to ensure sufficient fog volume, aluminum tee box design, plum blossom buckle pressure, dust and splash-proof, pitching adopts electric actuator, which can achieve 0-45 degrees pitch angle, left and right rotation adopts worm gear reducer motor with limit, to achieve the automatic 0-340 degrees rotating angle, so as to achieve a large range of coverage area.
| Model | Quiet Wind Range
(m) |
Fan power
(kw) |
Water pump power
(kw) |
Total
power (kw) |
Pitch angle
(conventional) |
Rotation angle | Nozzles17 | Noise at 20 meters (dB) | Weight
(kg) |
Size | ||
| Split | Box | Standard | Center
(optional) |
(mm) | ||||||||
| ZT-20 | 20-25 | 2-1.5 | 2-1.1 | ≤3 | -5-35° | -10-40° | 0-350° | single12 | 11 | ≤60 | 260 | 1300*720*1642 |
| ZT-30 | 25-35 | 2-2.2 | 2-1.5 | ≤5 | -5-35° | -10-40° | 0-350° | single12 | 11 | ≤65 | 290 | 1300*700*1700 |
| ZT-35 | 35-40 | 2-3 | 2-2.2 | ≤6 | -5-35° | -10-40° | 0-350° | single12 | 11 | ≤65 | 330 | 1300*800*1865 |
| ZT-40 | 40-50 | 2-7.5 | 2-3 | ≤13 | -5-35° | -5-35° | 0-350° | single24 | 15 | ≤68 | 440 | 1663*1300*2078 |
| ZT-50 | 55-60 | 2-11 | 2-3 | ≤16 | -5-35° | -5-35° | 0-350° | single24 | 15 | ≤68 | 530 | 1725*1555*1657 |
| ZT-60 | 60-70 | 2-15 | 2-4 | ≤21 | -5-35° | -5-35° | 0-350° | single30 | 15 | ≤75 | 640 | 1930*1300*2181 |
| ZT-70 | 70-80 | 2-22 | 2-5.5 | ≤30 | -5-35° | -5-35° | 0-350° | single36 | 31 | ≤75 | 850 | 2190*1750*1720 |
| ZT-80 | 75-85 | 2-30 | 2-5.5 | ≤37 | -5-35° | -5-35° | 0-350° | single46 | 31 | ≤80 | 960 | 2500*2040*2111 |
| ZT-90 | 80-90 | 4-37 | 2-7.5 | ≤46 | -5-45° | -5-45° | 0-350° | Double70 | 31 | ≤75 | 1580 | 2580*1990*2462 |
| ZT-100 | 90-100 | 4-45 | 2-7.5 | ≤55 | -5-45° | -5-45° | 0-350° | Double70 | 31 | ≤80 | 1610 | 2985*2170*2229 |
| ZT-110 | 100-110 | 4-55 | 2-11 | ≤68 | -5-45° | -5~35° | 0-350° | Double100 | 31 | ≤80 | 1850 | 2990*2170*2300 |
| ZT-120 | 100-120 | 4-75 | 2-15 | ≤92 | -5-45° | -5~35° | 0-350° | Double110 | 31 | ≤85 | 2350 | 3336*2480*2636 |
| ZT-140 | 110-140 | 4-75 | 2-18.5 | ≤96 | -5-45° | -5~35° | 0-350° | Double120 | 31 | ≤90 | 2850 | 3400*2480*2636 |
