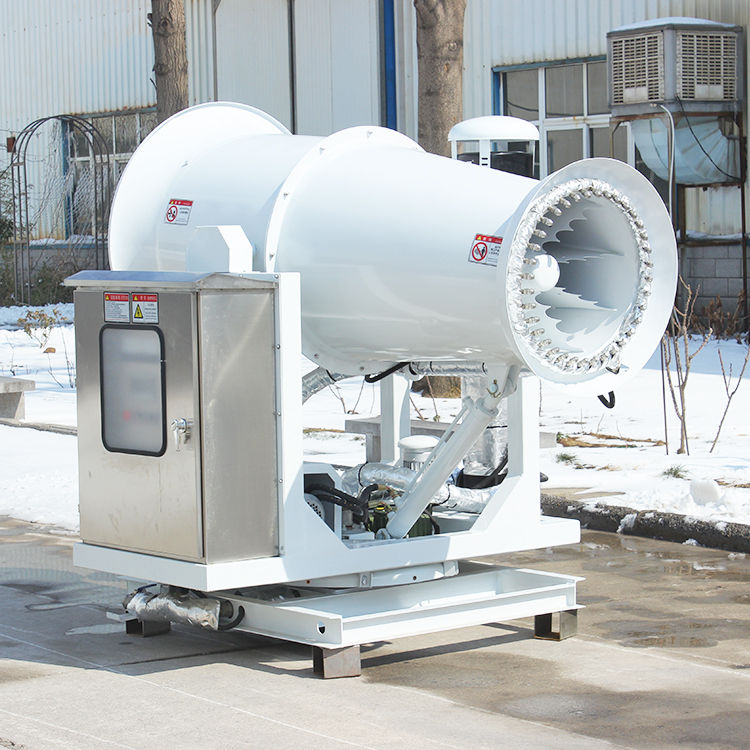

60 meters automatic disinfection fog cannon machine, suitable for coal mine, pesticide spraying, construction site demolition and other places.
Email: [email protected]
60 meters automatic disinfection fog cannon machine, suitable for coal mine, pesticide spraying, construction site demolition and other places.
Spray nozzle, over-water pipeline wrapped with heat insulation film, in the environment of minus 30 degrees can also be used normally, stainless steel electric control box, with plc and other control parts, and remote control together to achieve 100 meters of remote control, can also be installed spray time control, which time to specify which time for the work, to improve work efficiency.
| Model | Quiet Wind Range
(m) |
Fan power
(kw) |
Water pump power
(kw) |
Total
power (kw) |
Pitch angle
(conventional) |
Rotation angle | Nozzles17 | Noise at 20 meters (dB) | Weight
(kg) |
Size | ||
| Split | Box | Standard | Center
(optional) |
(mm) | ||||||||
| ZT-20 | 20-25 | 2-1.5 | 2-1.1 | ≤3 | -5-35° | -10-40° | 0-350° | single12 | 11 | ≤60 | 260 | 1300*720*1642 |
| ZT-30 | 25-35 | 2-2.2 | 2-1.5 | ≤5 | -5-35° | -10-40° | 0-350° | single12 | 11 | ≤65 | 290 | 1300*700*1700 |
| ZT-35 | 35-40 | 2-3 | 2-2.2 | ≤6 | -5-35° | -10-40° | 0-350° | single12 | 11 | ≤65 | 330 | 1300*800*1865 |
| ZT-40 | 40-50 | 2-7.5 | 2-3 | ≤13 | -5-35° | -5-35° | 0-350° | single24 | 15 | ≤68 | 440 | 1663*1300*2078 |
| ZT-50 | 55-60 | 2-11 | 2-3 | ≤16 | -5-35° | -5-35° | 0-350° | single24 | 15 | ≤68 | 530 | 1725*1555*1657 |
| ZT-60 | 60-70 | 2-15 | 2-4 | ≤21 | -5-35° | -5-35° | 0-350° | single30 | 15 | ≤75 | 640 | 1930*1300*2181 |
| ZT-70 | 70-80 | 2-22 | 2-5.5 | ≤30 | -5-35° | -5-35° | 0-350° | single36 | 31 | ≤75 | 850 | 2190*1750*1720 |
| ZT-80 | 75-85 | 2-30 | 2-5.5 | ≤37 | -5-35° | -5-35° | 0-350° | single46 | 31 | ≤80 | 960 | 2500*2040*2111 |
| ZT-90 | 80-90 | 4-37 | 2-7.5 | ≤46 | -5-45° | -5-45° | 0-350° | Double70 | 31 | ≤75 | 1580 | 2580*1990*2462 |
| ZT-100 | 90-100 | 4-45 | 2-7.5 | ≤55 | -5-45° | -5-45° | 0-350° | Double70 | 31 | ≤80 | 1610 | 2985*2170*2229 |
| ZT-110 | 100-110 | 4-55 | 2-11 | ≤68 | -5-45° | -5~35° | 0-350° | Double100 | 31 | ≤80 | 1850 | 2990*2170*2300 |
| ZT-120 | 100-120 | 4-75 | 2-15 | ≤92 | -5-45° | -5~35° | 0-350° | Double110 | 31 | ≤85 | 2350 | 3336*2480*2636 |
| ZT-140 | 110-140 | 4-75 | 2-18.5 | ≤96 | -5-45° | -5~35° | 0-350° | Double120 | 31 | ≤90 | 2850 | 3400*2480*2636 |
