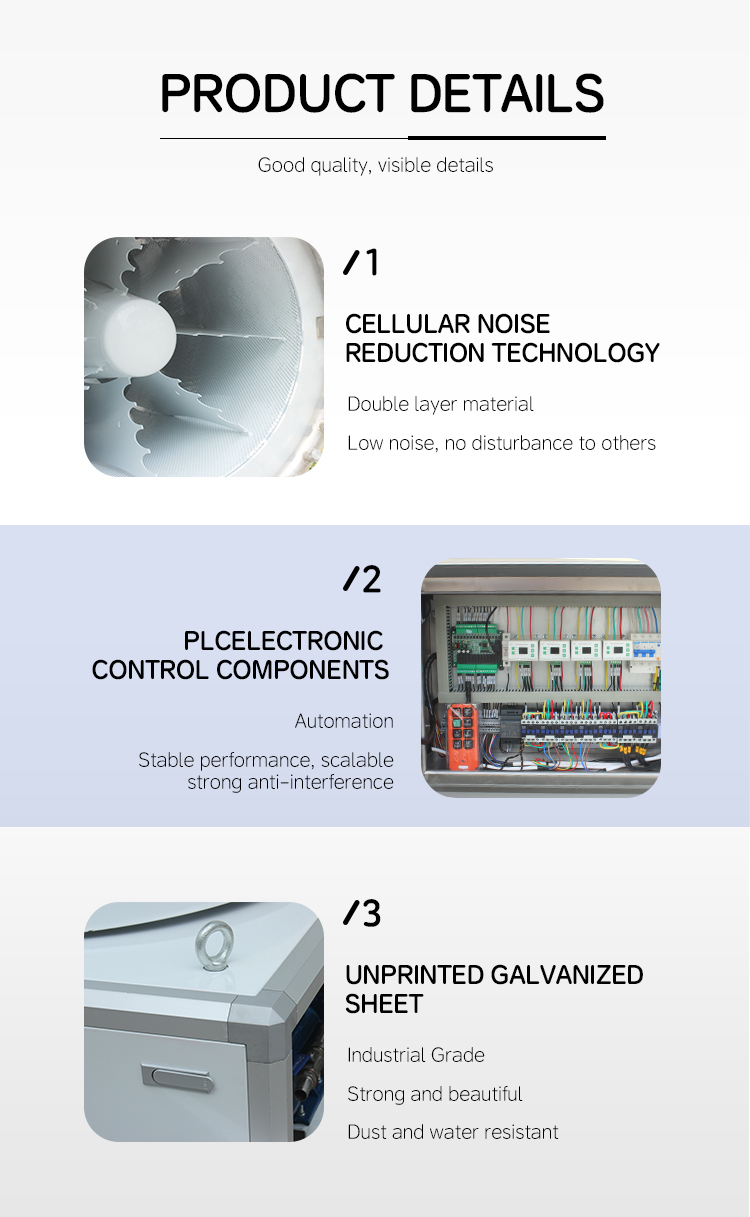

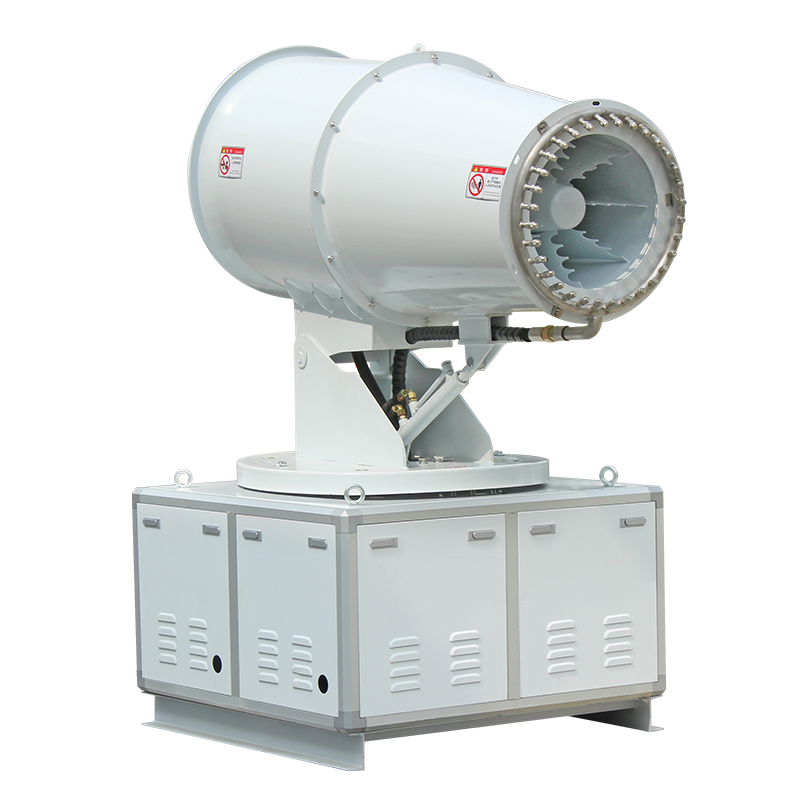

50m box type fog cannon has good mobility, can be vehicle-mounted, can be customized as one-piece and split type, adaptable, using honeycomb noise reduction technology, PLC automatic operating system, non-stamped galvanized sheet, box type structure without installation, can be used either with three-phase 380V mains power, or matching diesel generator set power supply.
Email: [email protected]
50m box type fog cannon has good mobility, can be vehicle-mounted, can be customized as one-piece and split type, adaptable, using honeycomb noise reduction technology, PLC automatic operating system, non-stamped galvanized sheet, box type structure without installation, can be used either with three-phase 380V mains power, or matching diesel generator set power supply.
All over water pipeline can be configured 304 stainless steel, can spray with corrosive liquids, such as pesticides, disinfection water and other liquids.

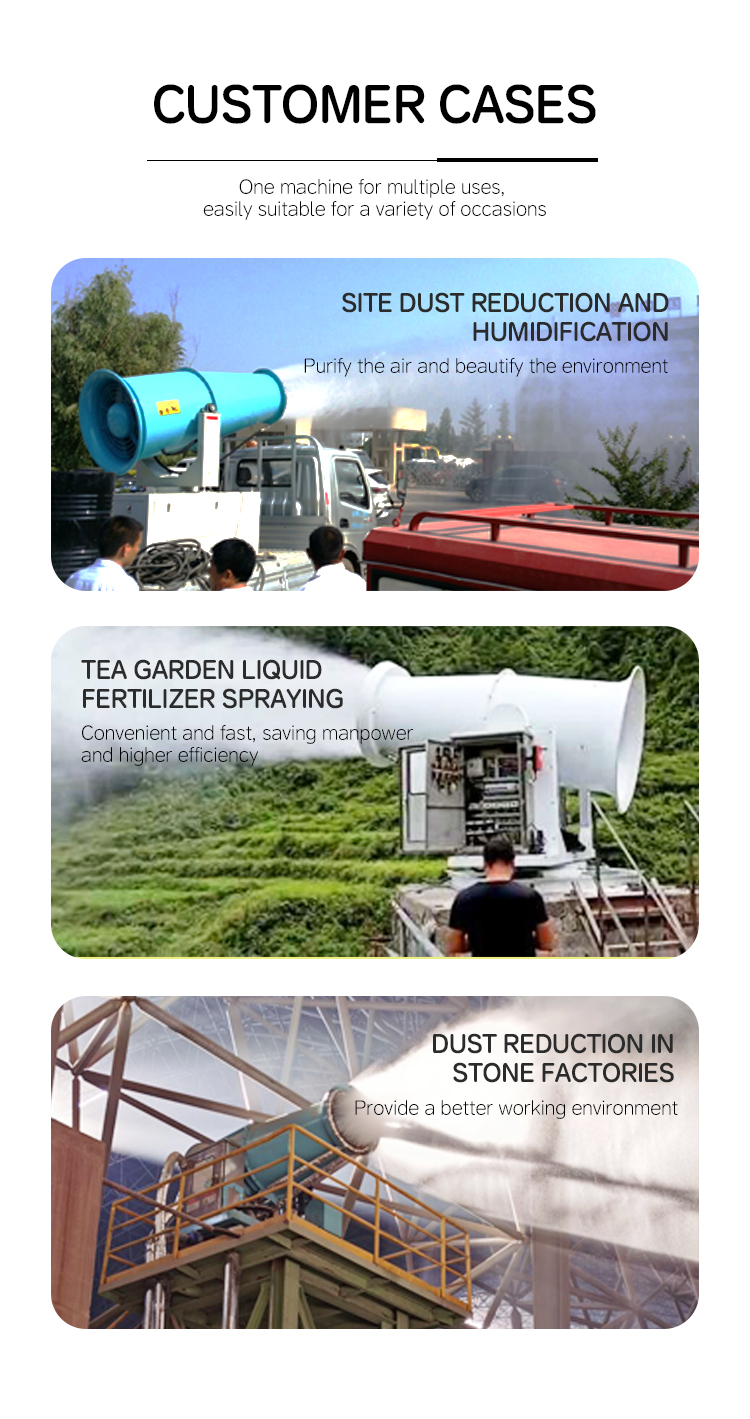

It is suitable for coal yard, industrial and mining industry, construction and demolition, greening maintenance, road dust suppression, extermination and epidemic prevention and other scenes.
| Model | Quiet Wind Range（m） | Water mist particle diameter（μm） | Coverage area（㎡） | Power
（kw） |
Pitch angle | Rotation angle | Number of nozzles | Noise at 20 meters （dB） | Weight（kg） |
| ZT-20 | 20 | 30-150 | ≤1900 | ≤3 | -5~35° | 0~340° | 12 | ≤60 | 260 |
| ZT-30 | 30 | 30-150 | ≤2700 | ≤5 | -5~35° | 0~340° | 12 | ≤65 | 290 |
| ZT-40 | 40 | 30-150 | ≤4800 | ≤13 | -5~35° | 0~340° | 24 | ≤68 | 440 |
| ZT-50 | 50 | 30-150 | ≤7600 | ≤16 | -5~35° | 0~340° | 24 | ≤68 | 530 |
| ZT-60 | 60 | 30-150 | ≤10900 | ≤21 | -5~35° | 0~340° | 30 | ≤75 | 640 |
| ZT-70 | 70 | 30-150 | ≤14900 | ≤30 | -5~35° | 0~340° | 36 | ≤75 | 850 |
| ZT-80 | 80 | 30-150 | ≤19500 | ≤37 | -5~35° | 0~340° | 46 | ≤80 | 960 |
| ZT-90 | 90 | 30-150 | ≤24700 | ≤46 | -5~35° | 0~340° | 70 | ≤80 | 1580 |
| ZT-100 | 100 | 30-150 | ≤30500 | ≤55 | -5~35° | 0~340° | 70 | ≤80 | 1610 |
| ZT-110 | 110 | 30-150 | ≤36900 | ≤68 | -5~35° | 0~340° | 100 | ≤80 | 1850 |
| ZT-120 | 120 | 30-150 | ≤43900 | ≤92 | -5~35° | 0~340° | 110 | ≤85 | 2350 |
| ZT-140 | 140 | 30-150 | ≤59800 | ≤96 | -5~35° | 0~340° | 120 | ≤90 | 2850 |
