Fixed remote fog cannon,mainly applicable to the cooling and dust removal in the scenes of waste treatment plant, coal yard, mine, harbor terminal, coal storage shed, sand and gravel plant, and so on.
Email: [email protected]

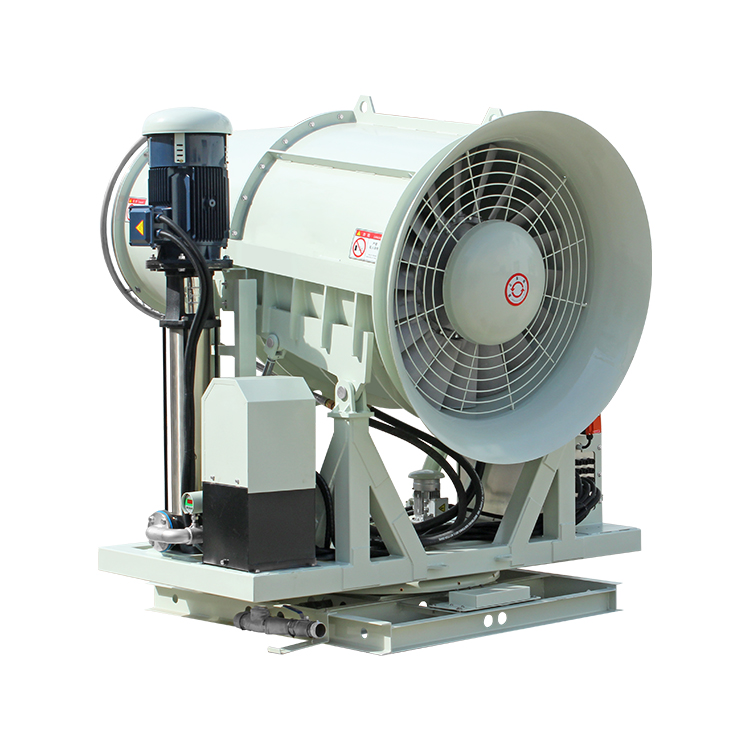

Product features: fixed remote fog cannon, long range, atomization, air volume can reach 220,000-250,000m³/h, spraying a wide range, can achieve a wide range of scenes of cooling and dust removal. With PLC electric control box, it can guarantee the stability of the circuit.
Main application: mainly applicable to the cooling and dust removal in the scenes of waste treatment plant, coal yard, mine, harbor terminal, coal storage shed, sand and gravel plant, and so on.
| Model | Quiet Wind Range（m） | Water mist particle diameter（μm） | Coverage area（㎡） | Power
（kw） |
Pitch angle | Rotation angle | Number of nozzles | Noise at 20 meters （dB） | Weight（kg） |
| ZT-20 | 20 | 30-150 | ≤1900 | ≤3 | -5~35° | 0~340° | 12 | ≤60 | 260 |
| ZT-30 | 30 | 30-150 | ≤2700 | ≤5 | -5~35° | 0~340° | 12 | ≤65 | 290 |
| ZT-40 | 40 | 30-150 | ≤4800 | ≤13 | -5~35° | 0~340° | 24 | ≤68 | 440 |
| ZT-50 | 50 | 30-150 | ≤7600 | ≤16 | -5~35° | 0~340° | 24 | ≤68 | 530 |
| ZT-60 | 60 | 30-150 | ≤10900 | ≤21 | -5~35° | 0~340° | 30 | ≤75 | 640 |
| ZT-70 | 70 | 30-150 | ≤14900 | ≤30 | -5~35° | 0~340° | 36 | ≤75 | 850 |
| ZT-80 | 80 | 30-150 | ≤19500 | ≤37 | -5~35° | 0~340° | 46 | ≤80 | 960 |
| ZT-90 | 90 | 30-150 | ≤24700 | ≤46 | -5~35° | 0~340° | 70 | ≤80 | 1580 |
| ZT-100 | 100 | 30-150 | ≤30500 | ≤55 | -5~35° | 0~340° | 70 | ≤80 | 1610 |
| ZT-110 | 110 | 30-150 | ≤36900 | ≤68 | -5~35° | 0~340° | 100 | ≤80 | 1850 |
| ZT-120 | 120 | 30-150 | ≤43900 | ≤92 | -5~35° | 0~340° | 110 | ≤85 | 2350 |
| ZT-140 | 140 | 30-150 | ≤59800 | ≤96 | -5~35° | 0~340° | 120 | ≤90 | 2850 |
