DISINFECTION FOG CANNON ZT-120

DISINFECTION FOG CANNON ZT-120

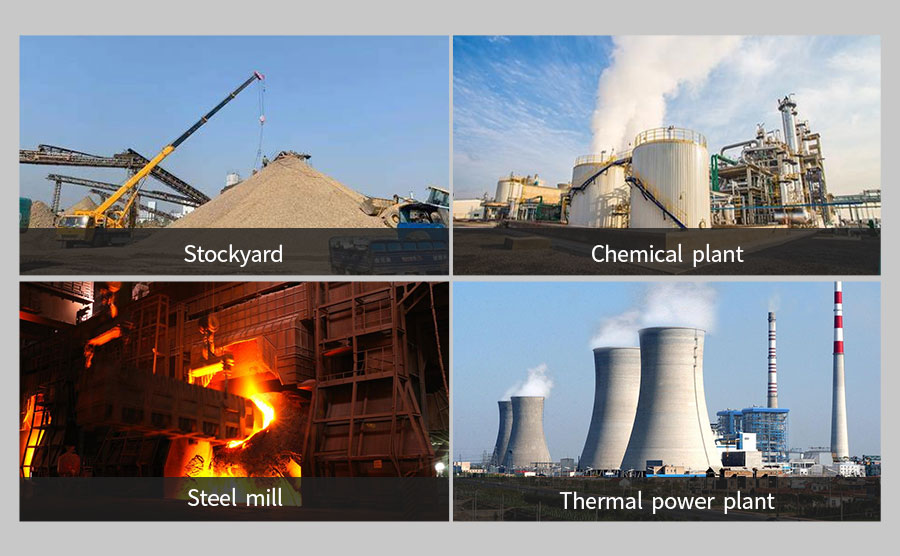

Remote disinfection fog cannon machine, suitable for site construction, building demolition, coal mine quarry, sewage treatment plant, large event site, warehouse dock, agricultural irrigation, city streets, industrial field and facility agriculture.

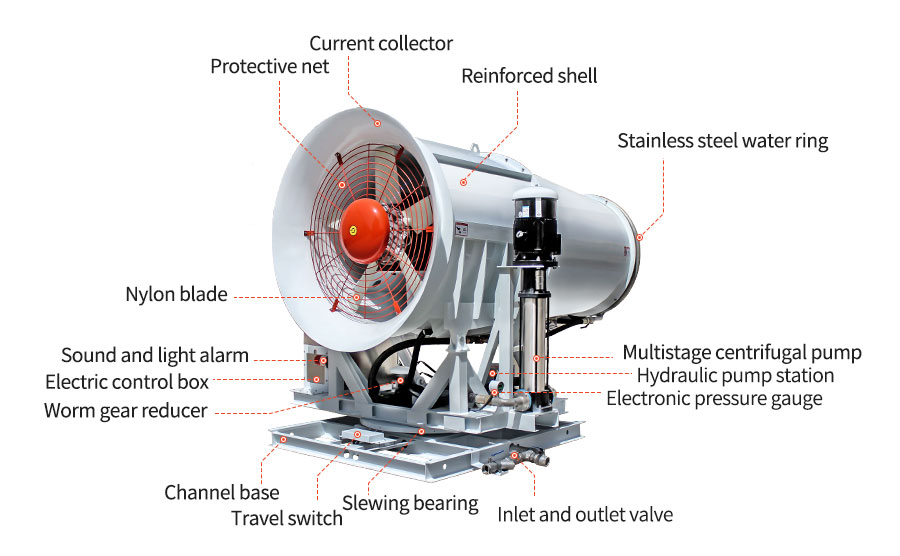

Double ring 110 spray nozzles, standing at 20 metres noise is less than 85 decibels, covering an area of 43,900 square metres, left and right rotation using a worm gear reducer, which can reach 0-340 degrees, with limit switches, to prevent the barrel from turning over and damaging the equipment.

Model	Quiet Wind Range（m）	Water mist particle diameter（μm）	Coverage area（㎡）	Power （kw）	Pitch angle	Rotation angle	Number of nozzles	Noise at 20 meters （dB）	Weight（kg）
ZT-20	20	30-150	≤1900	≤3	-5~35°	0~340°	12	≤60	260
ZT-30	30	30-150	≤2700	≤5	-5~35°	0~340°	12	≤65	290
ZT-40	40	30-150	≤4800	≤13	-5~35°	0~340°	24	≤68	440
ZT-50	50	30-150	≤7600	≤16	-5~35°	0~340°	24	≤68	530
ZT-60	60	30-150	≤10900	≤21	-5~35°	0~340°	30	≤75	640
ZT-70	70	30-150	≤14900	≤30	-5~35°	0~340°	36	≤75	850
ZT-80	80	30-150	≤19500	≤37	-5~35°	0~340°	46	≤80	960
ZT-90	90	30-150	≤24700	≤46	-5~35°	0~340°	70	≤80	1580
ZT-100	100	30-150	≤30500	≤55	-5~35°	0~340°	70	≤80	1610
ZT-110	110	30-150	≤36900	≤68	-5~35°	0~340°	100	≤80	1850
ZT-120	120	30-150	≤43900	≤92	-5~35°	0~340°	110	≤85	2350
ZT-140	140	30-150	≤59800	≤96	-5~35°	0~340°	120	≤90	2850
