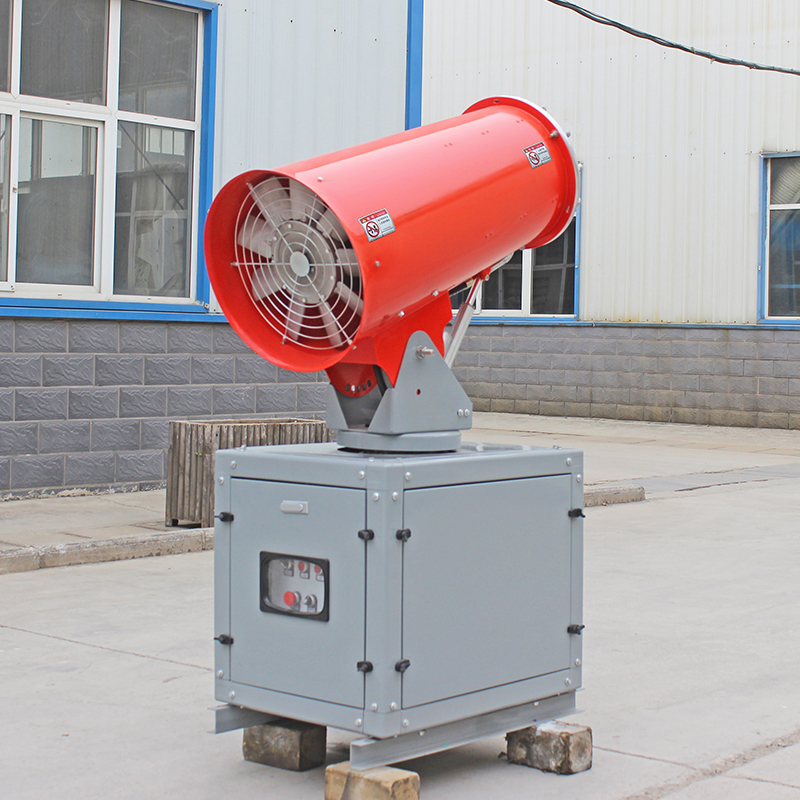

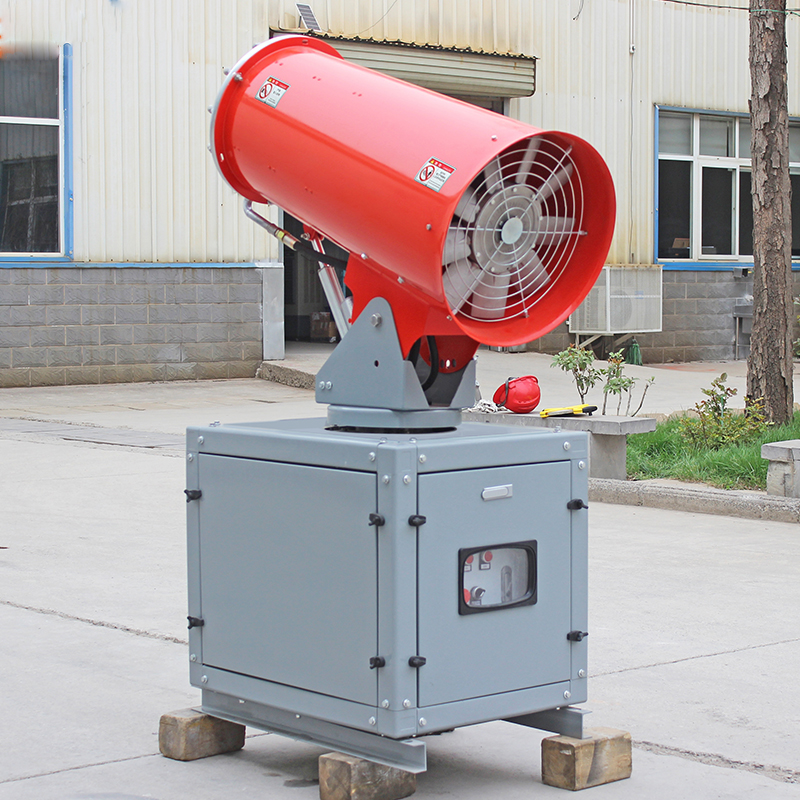

DISINFECTION FOG CANNON ZT-25

DISINFECTION FOG CANNON ZT-25

Disinfection fog cannon machine is an advanced environmental protection equipment, which is mainly used in many scenarios, such as urban dust control, construction site dust reduction, air purification, extermination and epidemic prevention. The main configurations are as follows:

Frame: usually made of stainless steel or specially treated metal to ensure that the machine can work stably even in harsh environments.

Power system: may include diesel or gasoline generator set, or directly connected to the utility power.

Plunger pump: the main function is to convert water through pressure into mist to be sprayed out.

Axial fog cannon machine: as the main jet propulsion device, used with special spray canisters.

Special spray canisters and nozzles: designed with rectifiers and nozzle clusters to form a highly efficient atomization effect.

Horizontal rotation device: to adjust the direction of spraying.

Pitch angle control device: for adjusting the up and down angle of the spray.

Electric control box: centralized control of various electrical components to ensure the normal operation of the equipment.

Water tank: store water source for plunger pump.

Model	Quiet Wind Range（m）	Water mist particle diameter（μm）	Coverage area（㎡）	Power （kw）	Pitch angle	Rotation angle	Number of nozzles	Noise at 20 meters （dB）	Weight（kg）
ZT-20	20	30-150	≤1900	≤3	-5~35°	0~340°	12	≤60	260
ZT-30	30	30-150	≤2700	≤5	-5~35°	0~340°	12	≤65	290
ZT-40	40	30-150	≤4800	≤13	-5~35°	0~340°	24	≤68	440
ZT-50	50	30-150	≤7600	≤16	-5~35°	0~340°	24	≤68	530
ZT-60	60	30-150	≤10900	≤21	-5~35°	0~340°	30	≤75	640
ZT-70	70	30-150	≤14900	≤30	-5~35°	0~340°	36	≤75	850
ZT-80	80	30-150	≤19500	≤37	-5~35°	0~340°	46	≤80	960
ZT-90	90	30-150	≤24700	≤46	-5~35°	0~340°	70	≤80	1580
ZT-100	100	30-150	≤30500	≤55	-5~35°	0~340°	70	≤80	1610
ZT-110	110	30-150	≤36900	≤68	-5~35°	0~340°	100	≤80	1850
ZT-120	120	30-150	≤43900	≤92	-5~35°	0~340°	110	≤85	2350
ZT-140	140	30-150	≤59800	≤96	-5~35°	0~340°	120	≤90	2850
