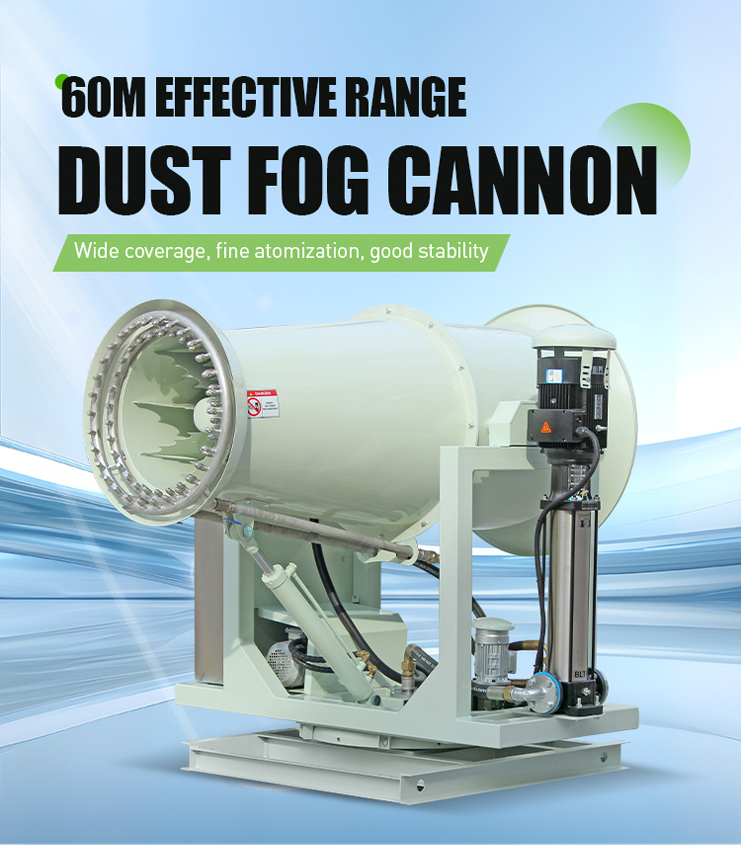

DISINFECTION FOG CANNON ZT-60

DISINFECTION FOG CANNON ZT-60

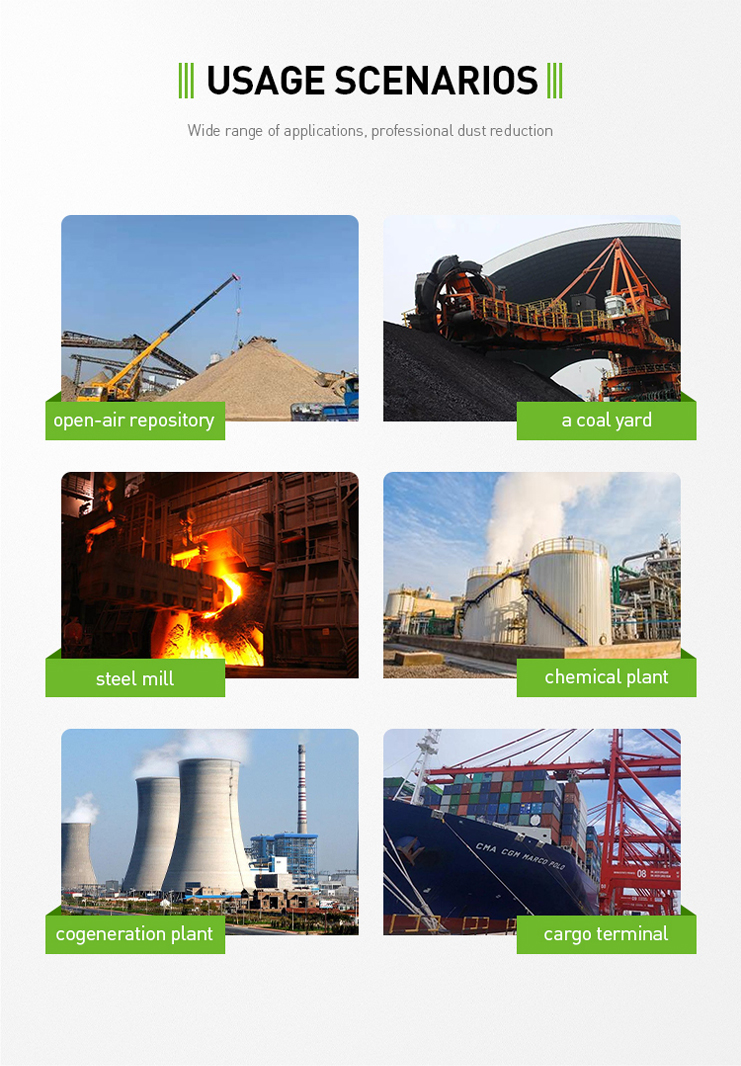

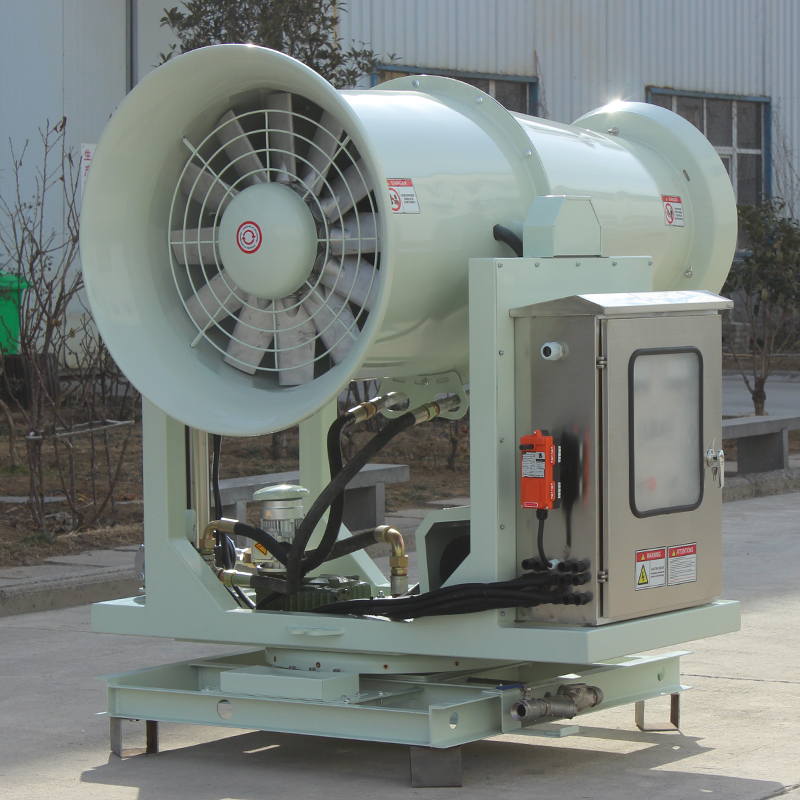

Disinfection fog cannon machine is a kind of equipment used for large area and fast disinfection, suitable for outdoor wide range of disinfection and dust reduction work, such as urban sanitation, epidemic prevention and control, public places, etc. 60 meters split fog cannon machine, stainless steel nozzle, can spray some corrosive liquids, in the phase of epidemic prevention and control, the fog cannon machine can be fully automatic left and right pitching to reduce the contact between people and reduce the spread of viruses, the remote control can be be used within 100 meters, easy to operate, faster and better to complete the disinfection work.

Model	Quiet Wind Range（m）	Water mist particle diameter（μm）	Coverage area（㎡）	Power （kw）	Pitch angle	Rotation angle	Number of nozzles	Noise at 20 meters （dB）	Weight（kg）
ZT-20	20	30-150	≤1900	≤3	-5~35°	0~340°	12	≤60	260
ZT-30	30	30-150	≤2700	≤5	-5~35°	0~340°	12	≤65	290
ZT-40	40	30-150	≤4800	≤13	-5~35°	0~340°	24	≤68	440
ZT-50	50	30-150	≤7600	≤16	-5~35°	0~340°	24	≤68	530
ZT-60	60	30-150	≤10900	≤21	-5~35°	0~340°	30	≤75	640
ZT-70	70	30-150	≤14900	≤30	-5~35°	0~340°	36	≤75	850
ZT-80	80	30-150	≤19500	≤37	-5~35°	0~340°	46	≤80	960
ZT-90	90	30-150	≤24700	≤46	-5~35°	0~340°	70	≤80	1580
ZT-100	100	30-150	≤30500	≤55	-5~35°	0~340°	70	≤80	1610
ZT-110	110	30-150	≤36900	≤68	-5~35°	0~340°	100	≤80	1850
ZT-120	120	30-150	≤43900	≤92	-5~35°	0~340°	110	≤85	2350
ZT-140	140	30-150	≤59800	≤96	-5~35°	0~340°	120	≤90	2850
