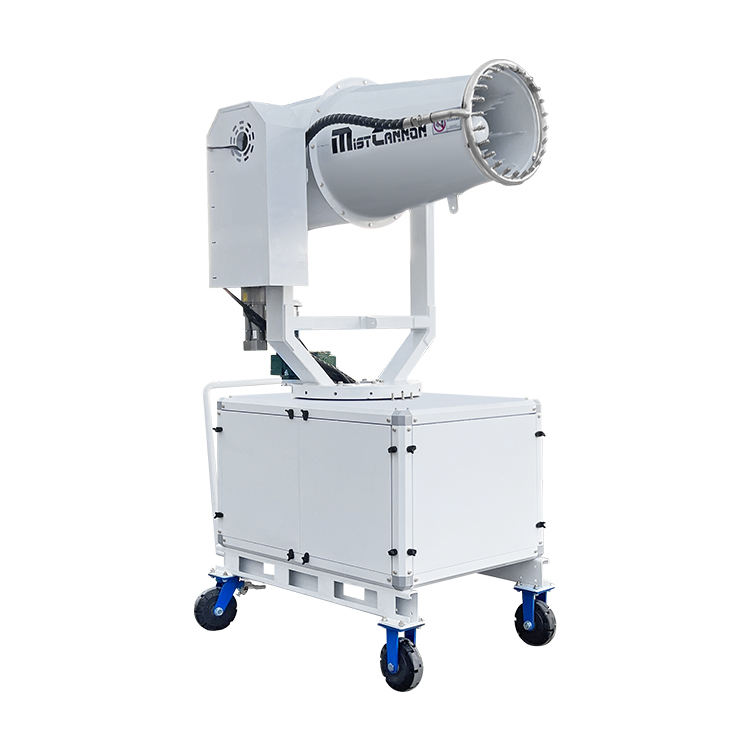

DISINFECTION MOBILE FOG CANNON ZT-50

DISINFECTION MOBILE FOG CANNON ZT-50

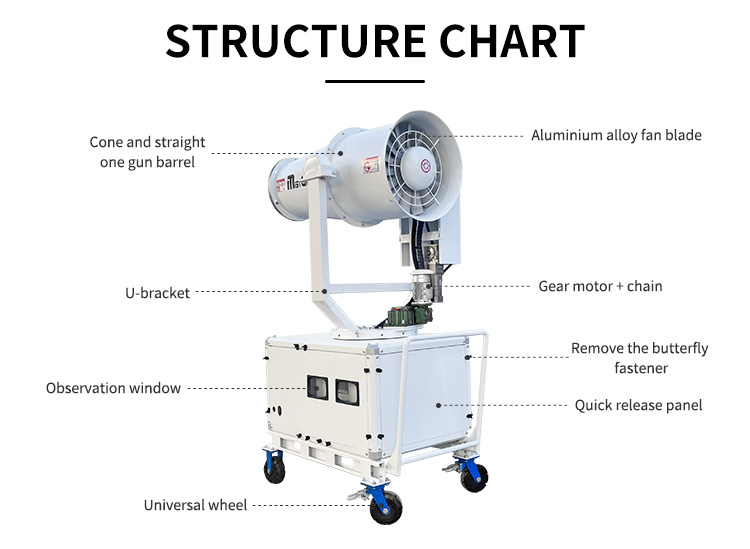

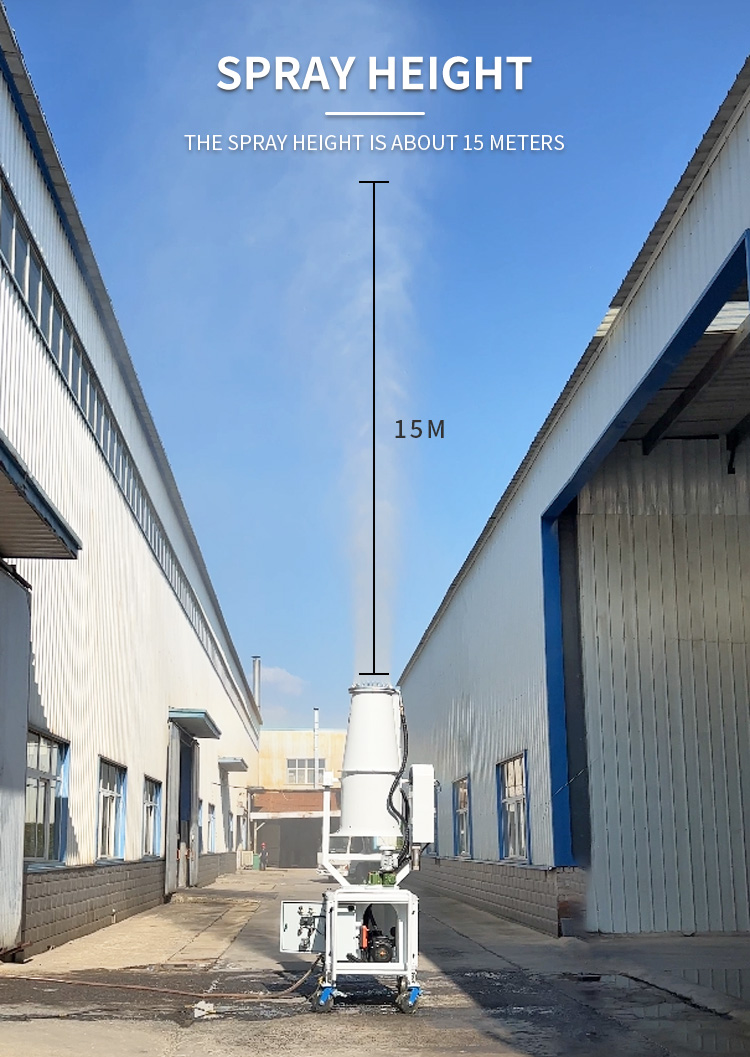

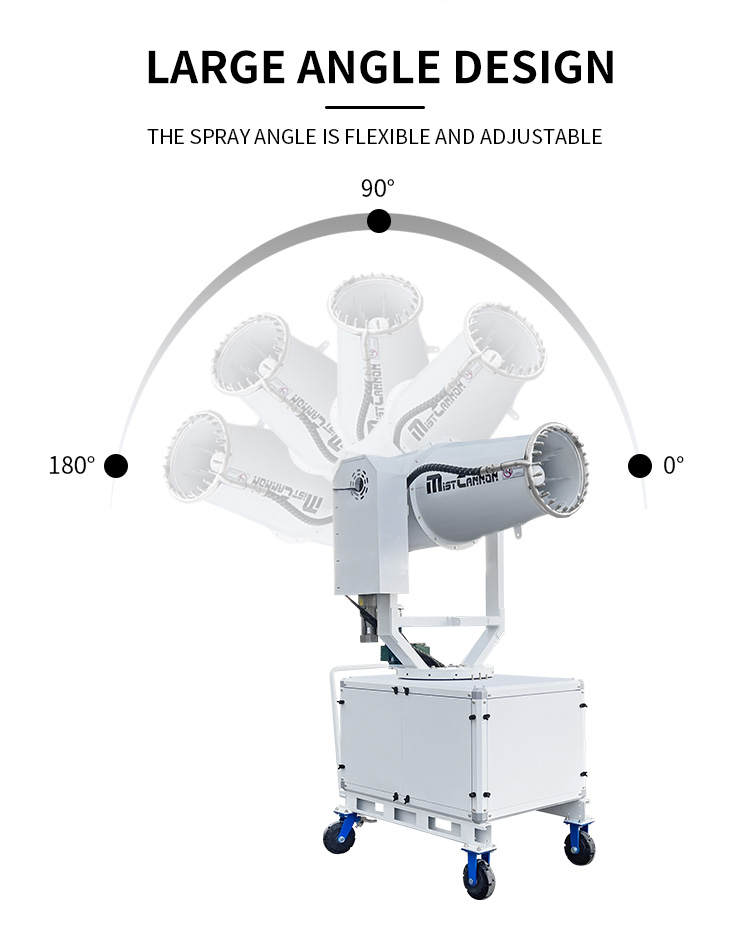

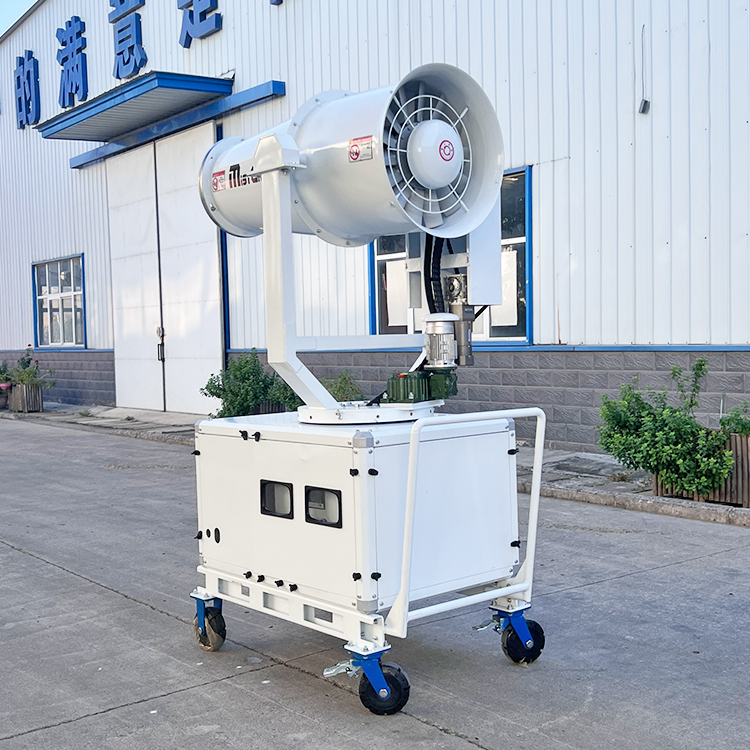

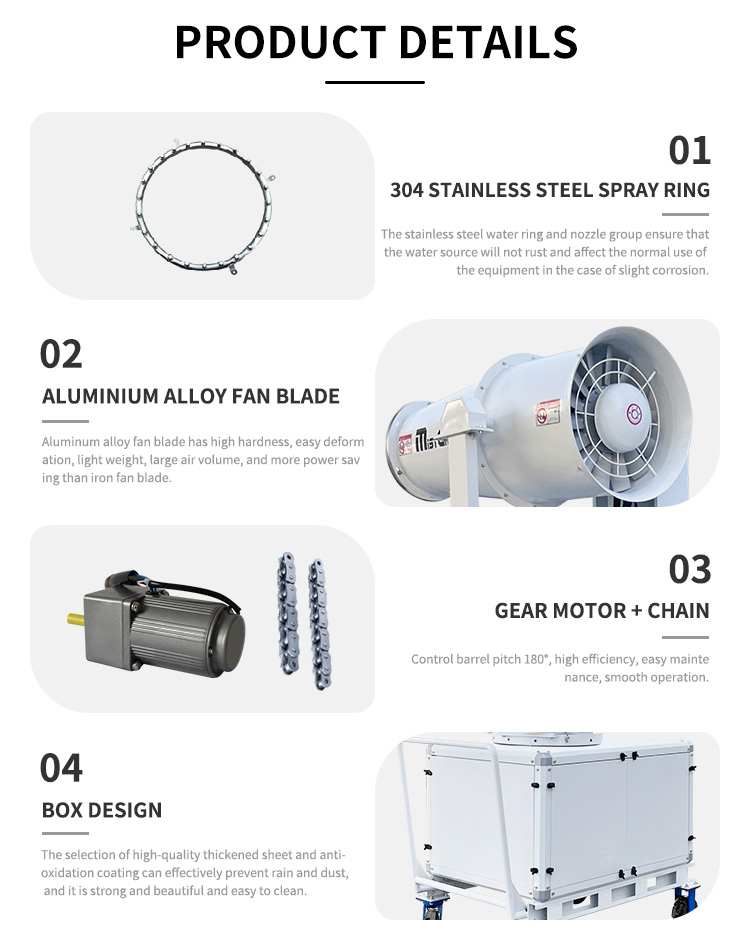

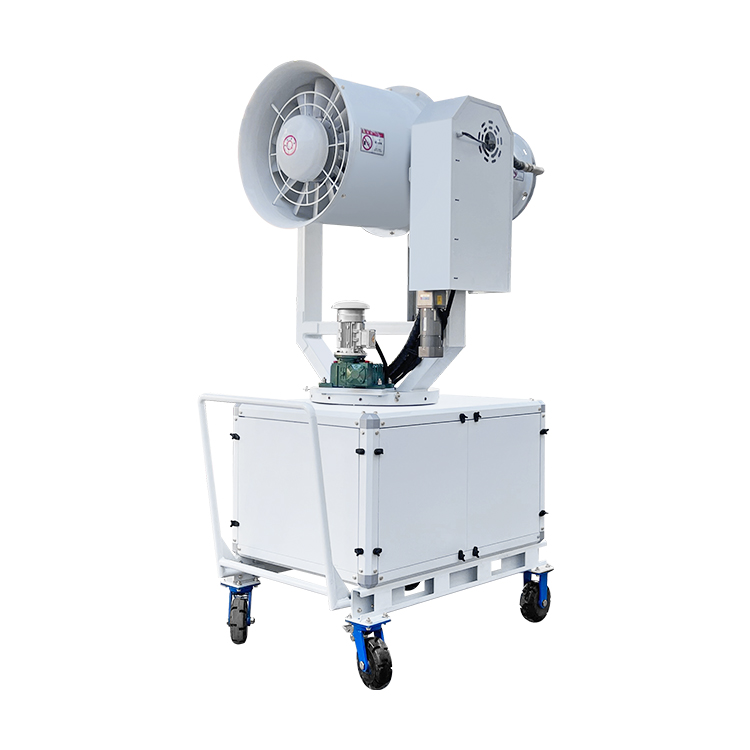

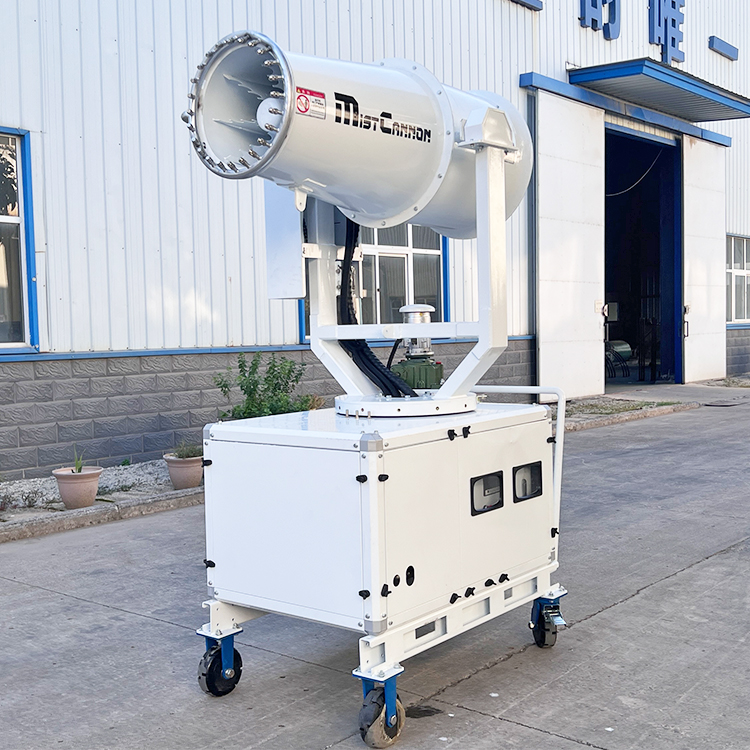

The new 2024 mobile disinfection fog cannon, with a new type of U-frame, so that the barrel can achieve a pitch angle of 0-180 degrees, and can be sprayed directly upwards, up to 15 metres (Note: upward spraying will significantly reduce the equipment’s fog delivery distance). With four mobile casters, it can achieve flexible dust reduction work. 24 spray nozzles in a single ring, with fan motor and water pump, it can reach 25-35 metres of air delivery distance.

The 50 metre fog cannon is widely used in chemical plants, coal mines, construction site demolition, pesticide spraying, playgrounds and other places.

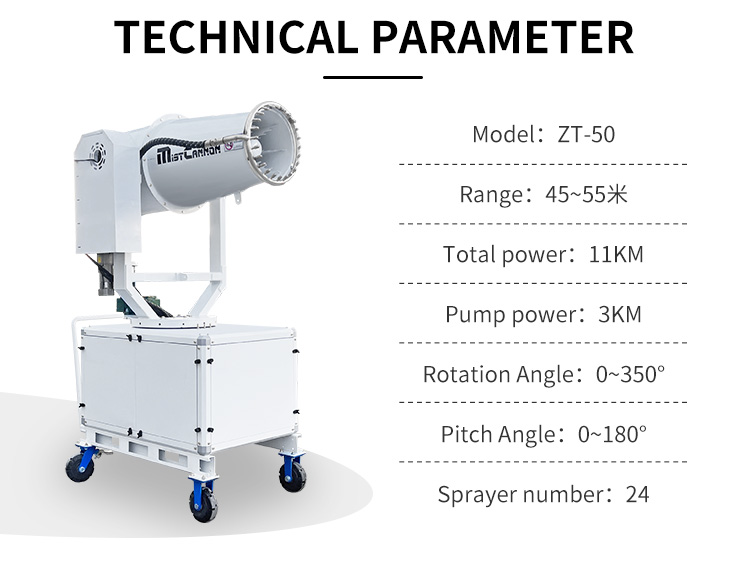

Model	Quiet Wind Range（m）	Water mist particle diameter（μm）	Coverage area（㎡）	Power （kw）	Pitch angle	Rotation angle	Number of nozzles	Noise at 20 meters （dB）	Weight（kg）
ZT-20	20	30-150	≤1900	≤3	-5~35°	0~340°	12	≤60	260
ZT-30	30	30-150	≤2700	≤5	-5~35°	0~340°	12	≤65	290
ZT-40	40	30-150	≤4800	≤13	-5~35°	0~340°	24	≤68	440
ZT-50	50	30-150	≤7600	≤16	-5~35°	0~340°	24	≤68	530
ZT-60	60	30-150	≤10900	≤21	-5~35°	0~340°	30	≤75	640
ZT-70	70	30-150	≤14900	≤30	-5~35°	0~340°	36	≤75	850
ZT-80	80	30-150	≤19500	≤37	-5~35°	0~340°	46	≤80	960
ZT-90	90	30-150	≤24700	≤46	-5~35°	0~340°	70	≤80	1580
ZT-100	100	30-150	≤30500	≤55	-5~35°	0~340°	70	≤80	1610
ZT-110	110	30-150	≤36900	≤68	-5~35°	0~340°	100	≤80	1850
ZT-120	120	30-150	≤43900	≤92	-5~35°	0~340°	110	≤85	2350
ZT-140	140	30-150	≤59800	≤96	-5~35°	0~340°	120	≤90	2850
