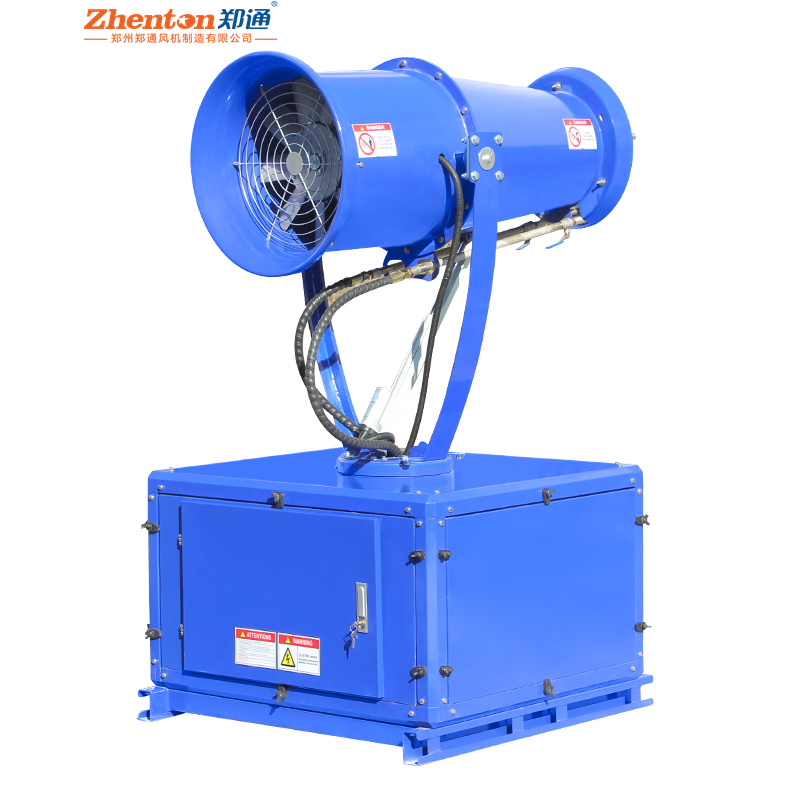

DUST BOX FOG CANNON ZT-30

DUST BOX FOG CANNON ZT-30

The work of 30 meters dust reduction box fog cannon is mainly through high-pressure jet water mist to adsorb fine dust and suspended particles in the air, so that they fall to the ground, thus realizing the effect of dust reduction. The application of dust reduction fog cannon not only effectively reduces the particles in air quality, but also its running cost is more economical compared with other dust reduction equipment, so it is widely used in many fields.

The working principle is that water is pressurized by high air pressure and passes through special nozzles to form a fine water mist, which is quickly sprayed to a farther place. These water mist particles meet the dust particles in the air, and due to the adhesion of the water molecules on the surface, the dust particles are moistened and increase in weight, and then fall to the ground due to gravity. In this process, the water mist can cover a large area without causing secondary pollution to the surrounding environment.

Model	Quiet Wind Range（m）	Water mist particle diameter（μm）	Coverage area（㎡）	Power （kw）	Pitch angle	Rotation angle	Number of nozzles	Noise at 20 meters （dB）	Weight（kg）
ZT-20	20	30-150	≤1900	≤3	-5~35°	0~340°	12	≤60	260
ZT-30	30	30-150	≤2700	≤5	-5~35°	0~340°	12	≤65	290
ZT-40	40	30-150	≤4800	≤13	-5~35°	0~340°	24	≤68	440
ZT-50	50	30-150	≤7600	≤16	-5~35°	0~340°	24	≤68	530
ZT-60	60	30-150	≤10900	≤21	-5~35°	0~340°	30	≤75	640
ZT-70	70	30-150	≤14900	≤30	-5~35°	0~340°	36	≤75	850
ZT-80	80	30-150	≤19500	≤37	-5~35°	0~340°	46	≤80	960
ZT-90	90	30-150	≤24700	≤46	-5~35°	0~340°	70	≤80	1580
ZT-100	100	30-150	≤30500	≤55	-5~35°	0~340°	70	≤80	1610
ZT-110	110	30-150	≤36900	≤68	-5~35°	0~340°	100	≤80	1850
ZT-120	120	30-150	≤43900	≤92	-5~35°	0~340°	110	≤85	2350
ZT-140	140	30-150	≤59800	≤96	-5~35°	0~340°	120	≤90	2850
