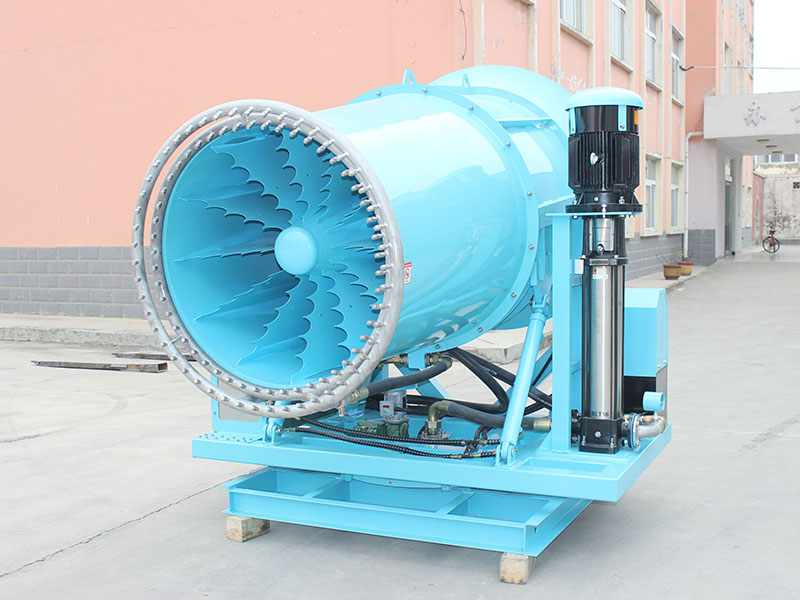

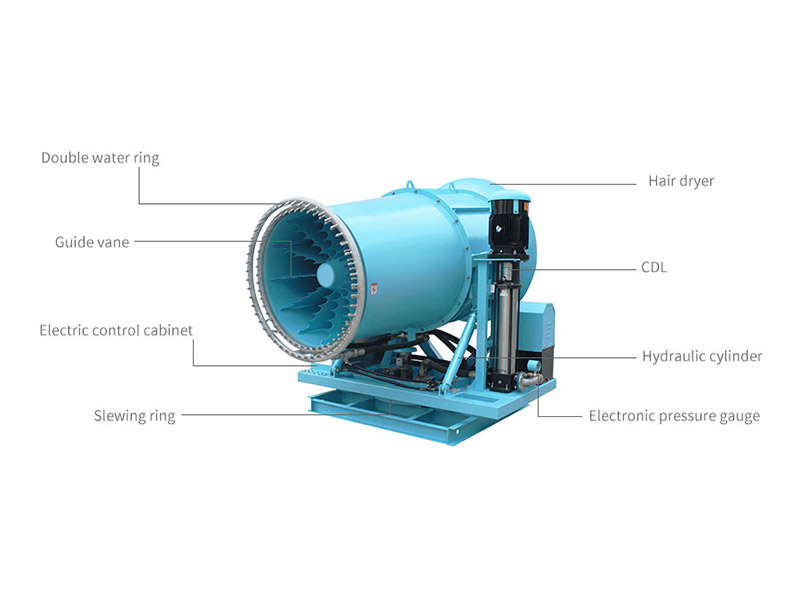

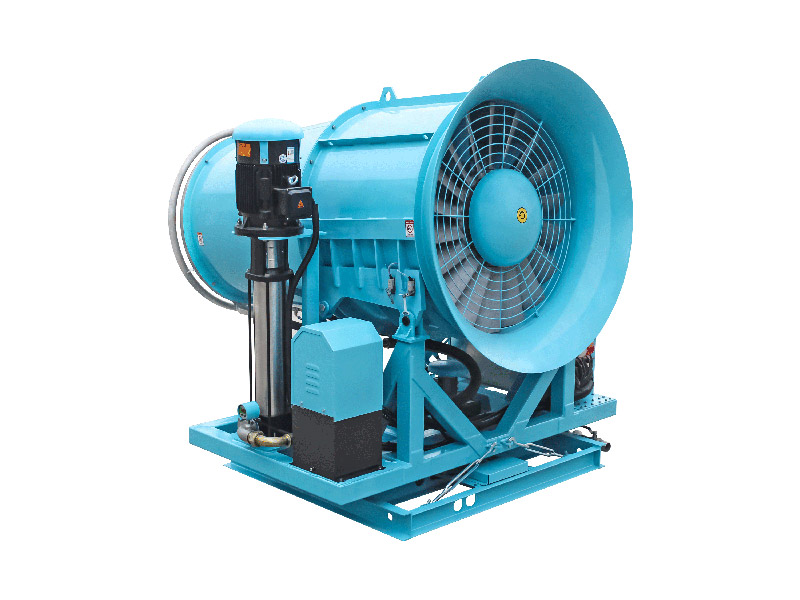

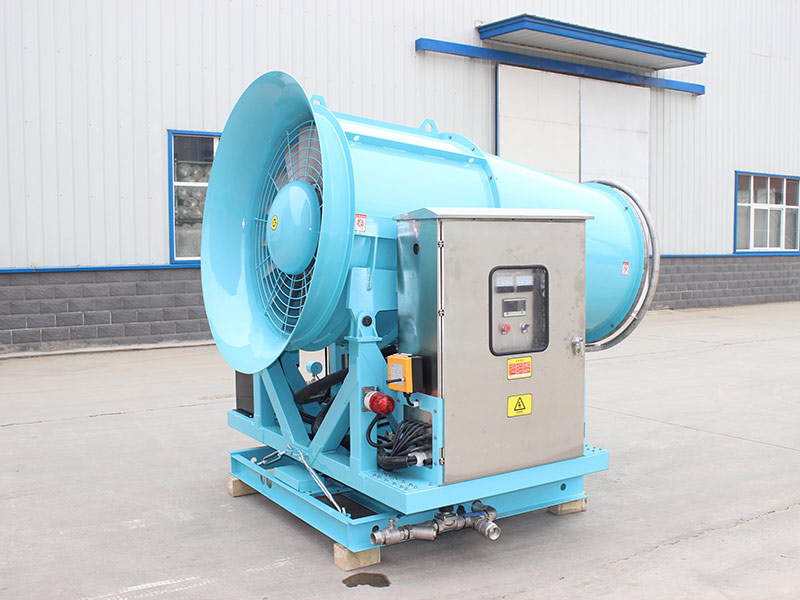

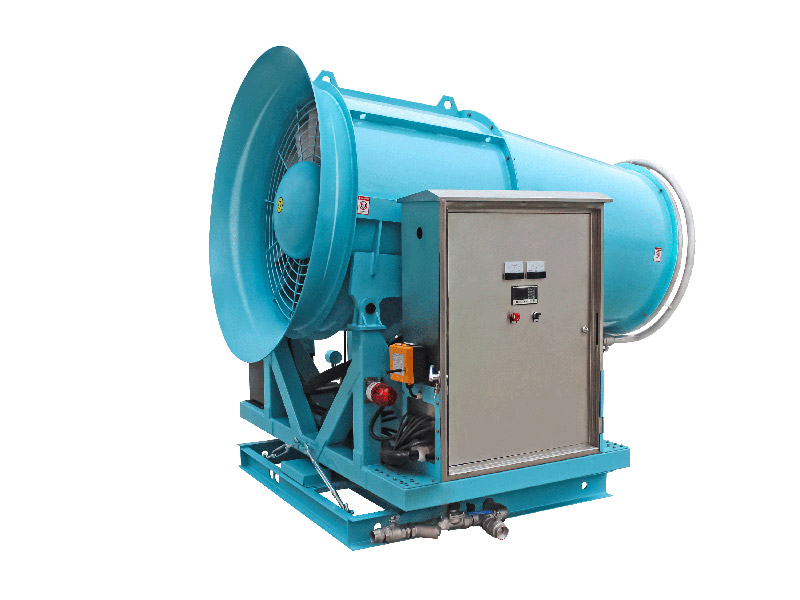

DUST FOG CANNON ZT-100


Used in coal mine sites, metallurgical iron and steel enterprises, mining areas, coal chemical enterprises, cement plants, thermal power plants, construction sites, open-air stacking plants for materials and mineral products, concrete treatment plants, waste dumps, waste incineration plants, sand plants, dry Type material warehouse, open-air blasting, heavy dust area.

Email: [email protected]


Product detail

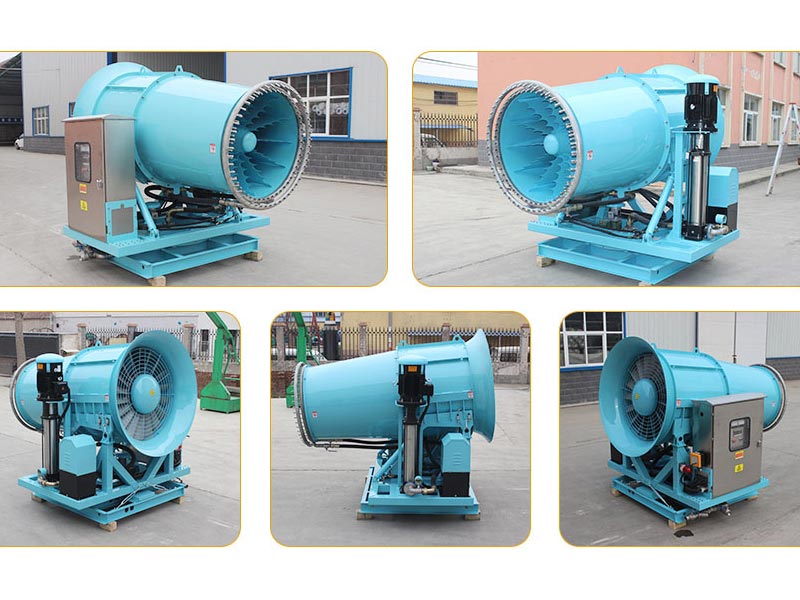

DUST FOG CANNON ZT-100

Features:

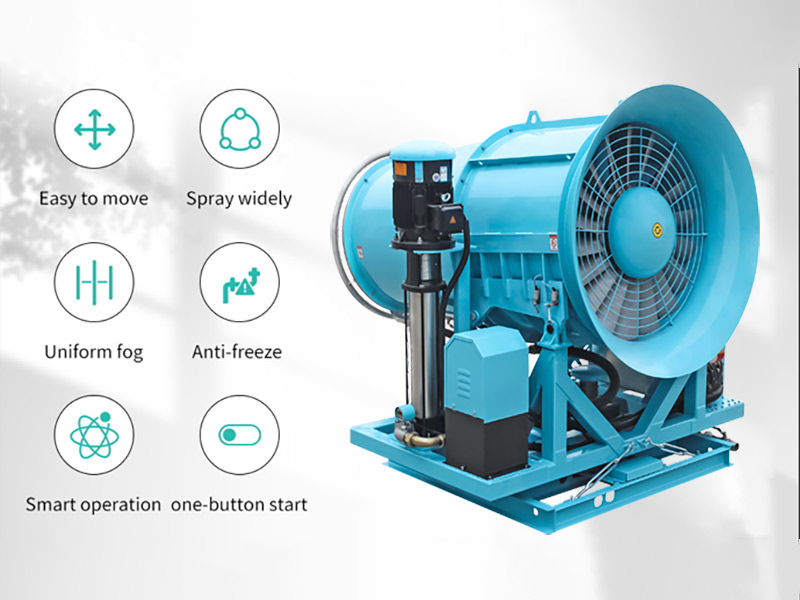

The 100-meter intelligent fog cannon has high working efficiency and can realize precise spraying. The sprayed mist particles are small and form a moist mist when it comes into contact with dust, which can quickly suppress dust. The matching power is flexible and flexible, and it is safe and reliable to use.

DUST FOG CANNON ZT-100

The main purpose:

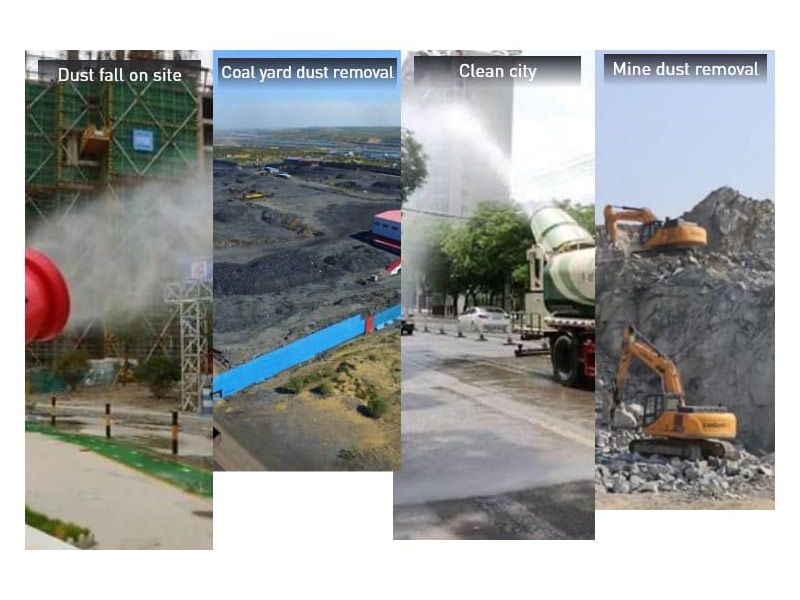

Used in coal mine sites, metallurgical iron and steel enterprises, mining areas, coal chemical enterprises, cement plants, thermal power plants, construction sites, open-air stacking plants for materials and mineral products, concrete treatment plants, waste dumps, waste incineration plants, sand plants, dry Type material warehouse, open-air blasting, heavy dust area.

DUST FOG CANNON ZT-100

Model Quiet Wind Range(m) Water mist particle diameter(μm) Coverage area(㎡) Power (kw) Pitch angle Rotation angle Number of nozzles Noise at 20 meters (dB) Weight(kg)
ZT-20 20 30-150 ≤1900 ≤3 -5~35° 0~340° 12 ≤60 260
ZT-30 30 30-150 ≤2700 ≤5 -5~35° 0~340° 12 ≤65 290
ZT-40 40 30-150 ≤4800 ≤13 -5~35° 0~340° 24 ≤68 440
ZT-50 50 30-150 ≤7600 ≤16 -5~35° 0~340° 24 ≤68 530
ZT-60 60 30-150 ≤10900 ≤21 -5~35° 0~340° 30 ≤75 640
ZT-70 70 30-150 ≤14900 ≤30 -5~35° 0~340° 36 ≤75 850
ZT-80 80 30-150 ≤19500 ≤37 -5~35° 0~340° 46 ≤80 960
ZT-90 90 30-150 ≤24700 ≤46 -5~35° 0~340° 70 ≤80 1580
ZT-100 100 30-150 ≤30500 ≤55 -5~35° 0~340° 70 ≤80 1610
ZT-110 110 30-150 ≤36900 ≤68 -5~35° 0~340° 100 ≤80 1850
ZT-120 120 30-150 ≤43900 ≤92 -5~35° 0~340° 110 ≤85 2350
ZT-140 140 30-150 ≤59800 ≤96 -5~35° 0~340° 120 ≤90 2850

Note: The above parameters are for reference only, and the actual product shall prevail.
If the above requirements cannot meet your needs, our company can customize it according to your requirements.

DUST FOG CANNON ZT-100

DUST FOG CANNON ZT-100
