30 meters fog cannon machine is widely used in chemical plants, coal mine, construction site demolition, pesticide spraying, playgrounds and other places.
Email: [email protected]

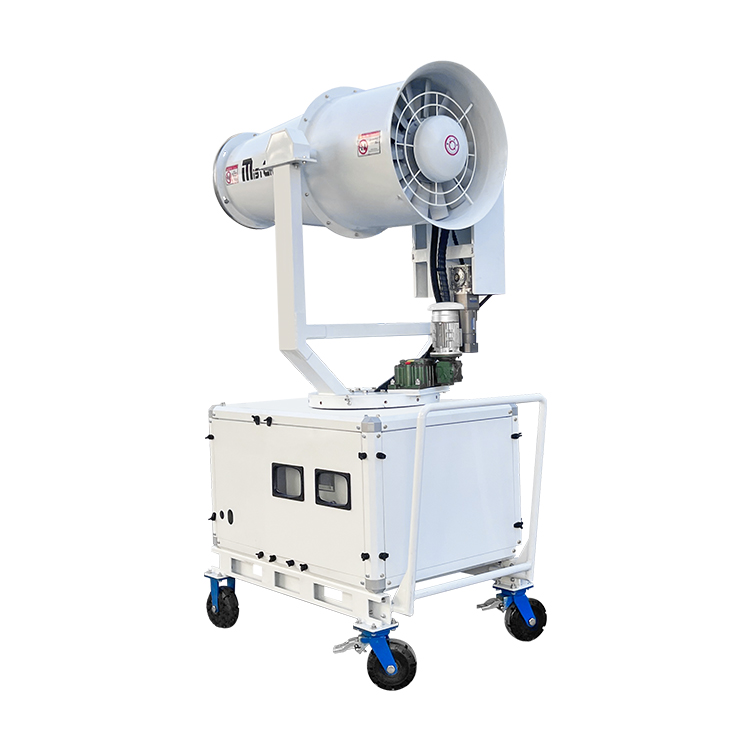

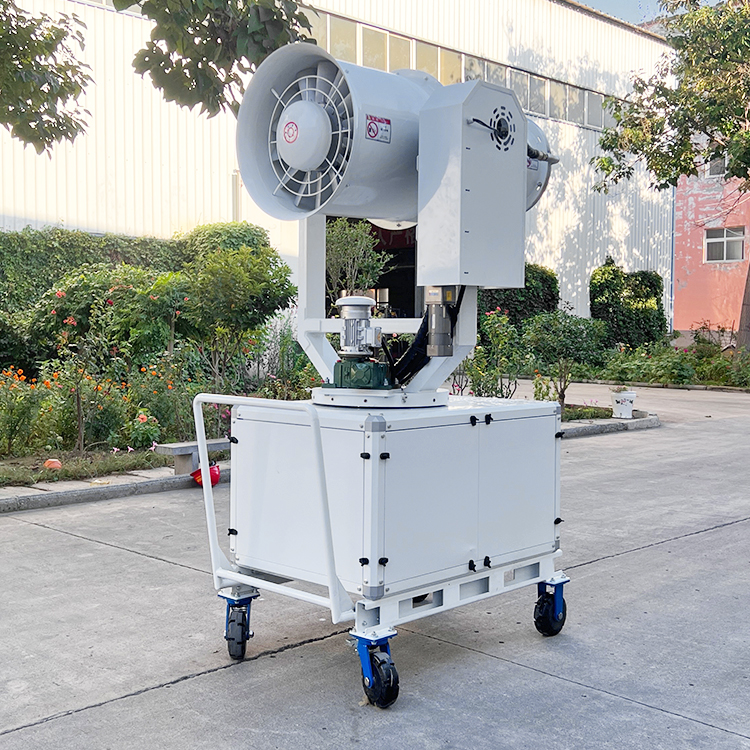

The new 2024 fog cannon, with a new type of U-frame, enables the cannon barrel to achieve a pitch angle of 0-180 degrees, and can spray directly upwards, up to 15 meters (Note: upward spraying will significantly reduce the equipment’s fog delivery distance). With four mobile casters, it can realize flexible dust reduction work. 24 spray nozzles in a single ring, with fan motor and water pump, it can reach 25-35 meters of air delivery distance.
30 meters fog cannon machine is widely used in chemical plants, coal mine, construction site demolition, pesticide spraying, playgrounds and other places.
| Model | Quiet Wind Range
(m) |
Fan power
(kw) |
Water pump power
(kw) |
Total
power (kw) |
Pitch angle
(conventional) |
Rotation angle | Nozzles17 | Noise at 20 meters (dB) | Weight
(kg) |
Size | ||
| Split | Box | Standard | Center
(optional) |
(mm) | ||||||||
| ZT-20 | 20-25 | 2-1.5 | 2-1.1 | ≤3 | -5-35° | -10-40° | 0-350° | single12 | 11 | ≤60 | 260 | 1300*720*1642 |
| ZT-30 | 25-35 | 2-2.2 | 2-1.5 | ≤5 | -5-35° | -10-40° | 0-350° | single12 | 11 | ≤65 | 290 | 1300*700*1700 |
| ZT-35 | 35-40 | 2-3 | 2-2.2 | ≤6 | -5-35° | -10-40° | 0-350° | single12 | 11 | ≤65 | 330 | 1300*800*1865 |
| ZT-40 | 40-50 | 2-7.5 | 2-3 | ≤13 | -5-35° | -5-35° | 0-350° | single24 | 15 | ≤68 | 440 | 1663*1300*2078 |
| ZT-50 | 55-60 | 2-11 | 2-3 | ≤16 | -5-35° | -5-35° | 0-350° | single24 | 15 | ≤68 | 530 | 1725*1555*1657 |
| ZT-60 | 60-70 | 2-15 | 2-4 | ≤21 | -5-35° | -5-35° | 0-350° | single30 | 15 | ≤75 | 640 | 1930*1300*2181 |
| ZT-70 | 70-80 | 2-22 | 2-5.5 | ≤30 | -5-35° | -5-35° | 0-350° | single36 | 31 | ≤75 | 850 | 2190*1750*1720 |
| ZT-80 | 75-85 | 2-30 | 2-5.5 | ≤37 | -5-35° | -5-35° | 0-350° | single46 | 31 | ≤80 | 960 | 2500*2040*2111 |
| ZT-90 | 80-90 | 4-37 | 2-7.5 | ≤46 | -5-45° | -5-45° | 0-350° | Double70 | 31 | ≤75 | 1580 | 2580*1990*2462 |
| ZT-100 | 90-100 | 4-45 | 2-7.5 | ≤55 | -5-45° | -5-45° | 0-350° | Double70 | 31 | ≤80 | 1610 | 2985*2170*2229 |
| ZT-110 | 100-110 | 4-55 | 2-11 | ≤68 | -5-45° | -5~35° | 0-350° | Double100 | 31 | ≤80 | 1850 | 2990*2170*2300 |
| ZT-120 | 100-120 | 4-75 | 2-15 | ≤92 | -5-45° | -5~35° | 0-350° | Double110 | 31 | ≤85 | 2350 | 3336*2480*2636 |
| ZT-140 | 110-140 | 4-75 | 2-18.5 | ≤96 | -5-45° | -5~35° | 0-350° | Double120 | 31 | ≤90 | 2850 | 3400*2480*2636 |
