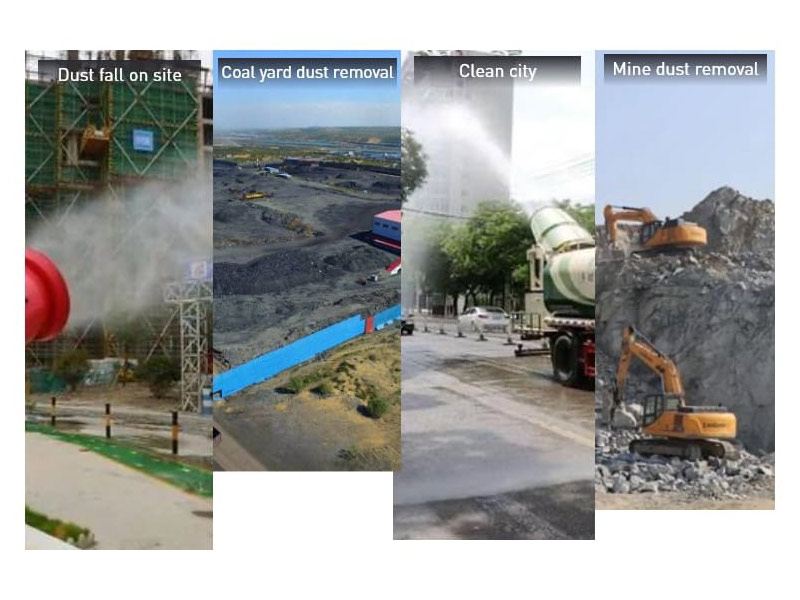

Suitable for demolition sites, metallurgical iron and steel enterprises, mining areas, coal chemical enterprises, cement plants, power plants, construction sites, materials and minerals. , sand factories, dry material warehouses, open-air blasting, and heavy dust areas.
Email: [email protected]
The water is transported through a high-pressure water pump to the atomizing nozzle of the fog gun machine through a specific pipeline for atomization, and then the water mist generated by the nozzle is transported out through the airflow generated by the blower fan to carry out the spraying operation.
The water mist particles are extremely small, which can be used for liquid mist dust reduction, and can effectively control the pollution particles and dust in the air, so as to achieve the effect of purifying the air.
Suitable for demolition sites, metallurgical iron and steel enterprises, mining areas, coal chemical enterprises, cement plants, power plants, construction sites, materials and minerals. , sand factories, dry material warehouses, open-air blasting, and heavy dust areas.
Model | Quiet Wind Range (m) | Water mist particle diameter (μm) | Coverage area (㎡) | Power (kw) | Pitch angle | Rotation angle | Number of nozzles | Noise at 20 meters (dB) | Weight (kg) |
ZT-20 | 20 | 30-150 | ≤1900 | ≤3 | -5~35° | 0~340° | 12 | ≤60 | 260 |
ZT-30 | 30 | 30-150 | ≤2700 | ≤5 | -5~35° | 0~340° | 12 | ≤65 | 290 |
ZT-40 | 40 | 30-150 | ≤4800 | ≤13 | -5~35° | 0~340° | 24 | ≤68 | 440 |
ZT-50 | 50 | 30-150 | ≤7600 | ≤16 | -5~35° | 0~340° | 24 | ≤68 | 530 |
ZT-60 | 60 | 30-150 | ≤10900 | ≤21 | -5~35° | 0~340° | 30 | ≤75 | 640 |
ZT-70 | 70 | 30-150 | ≤14900 | ≤30 | -5~35° | 0~340° | 36 | ≤75 | 850 |
ZT-80 | 80 | 30-150 | ≤19500 | ≤37 | -5~35° | 0~340° | 46 | ≤80 | 960 |
ZT-90 | 90 | 30-150 | ≤24700 | ≤46 | -5~35° | 0~340° | 70 | ≤80 | 1580 |
ZT-100 | 100 | 30-150 | ≤30500 | ≤55 | -5~35° | 0~340° | 70 | ≤80 | 1610 |
ZT-110 | 110 | 30-150 | ≤36900 | ≤68 | -5~35° | 0~340° | 100 | ≤80 | 1850 |
ZT-120 | 120 | 30-150 | ≤43900 | ≤92 | -5~35° | 0~340° | 110 | ≤85 | 2350 |
ZT-140 | 140 | 30-150 | ≤59800 | ≤96 | -5~35° | 0~340° | 120 | ≤90 | 2850 |
Note: The above parameters are for reference only, and the actual product shall prevail.
If the above requirements cannot meet your needs, our company can customize it according to your requirements.
