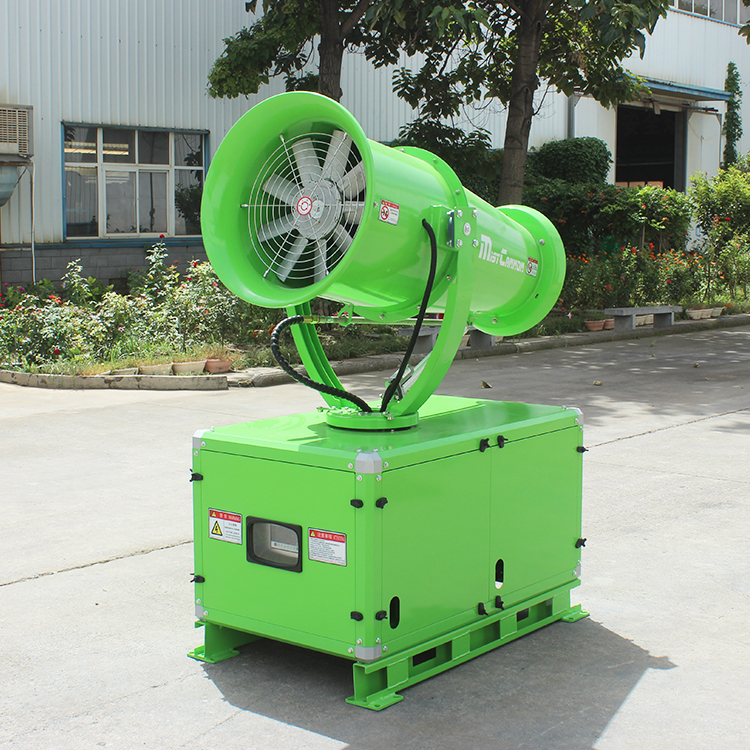

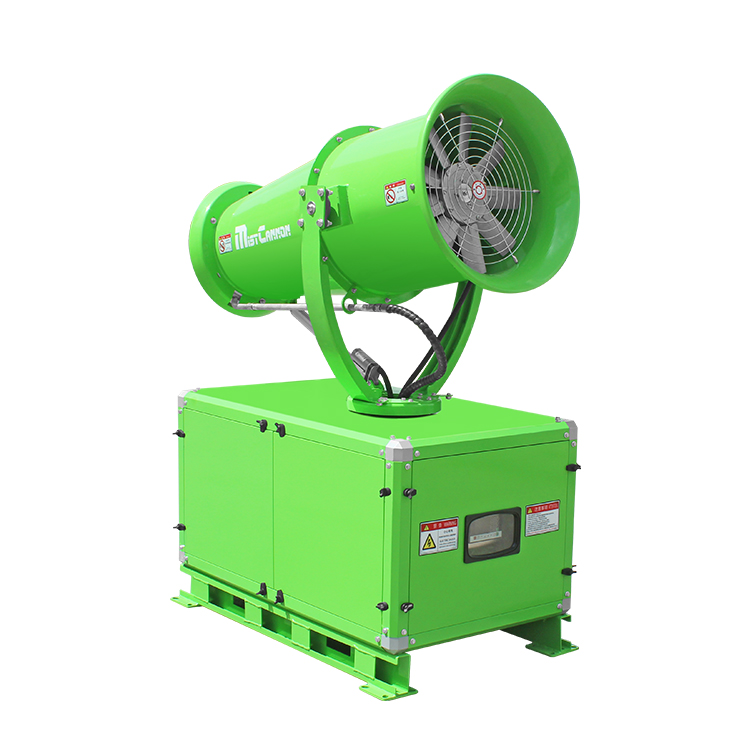

40m dust suppression fog cannon machine, widely used in roads, coal mine, construction site demolition, pesticide spraying, garbage factory deodorization, scenic spots and other places.
Email: [email protected]
40m dust suppression fog cannon machine, widely used in roads, coal mine, construction site demolition, pesticide spraying, garbage factory deodorization, scenic spots and other places.

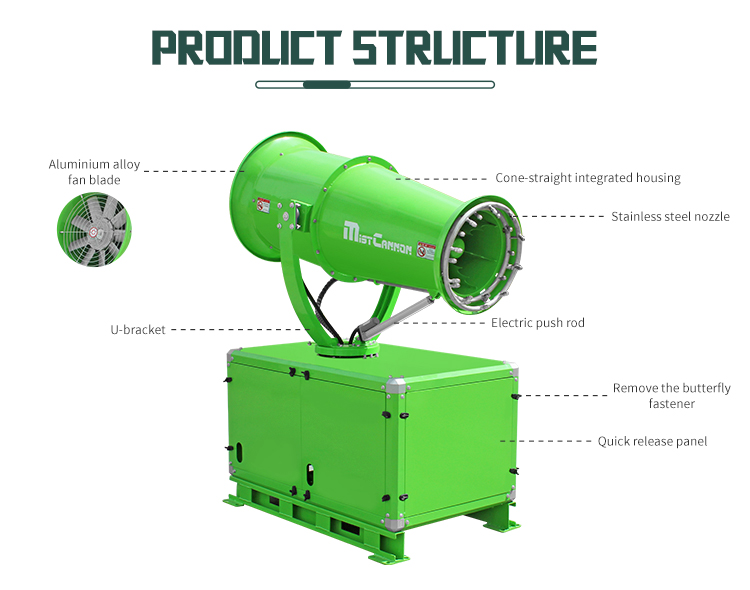

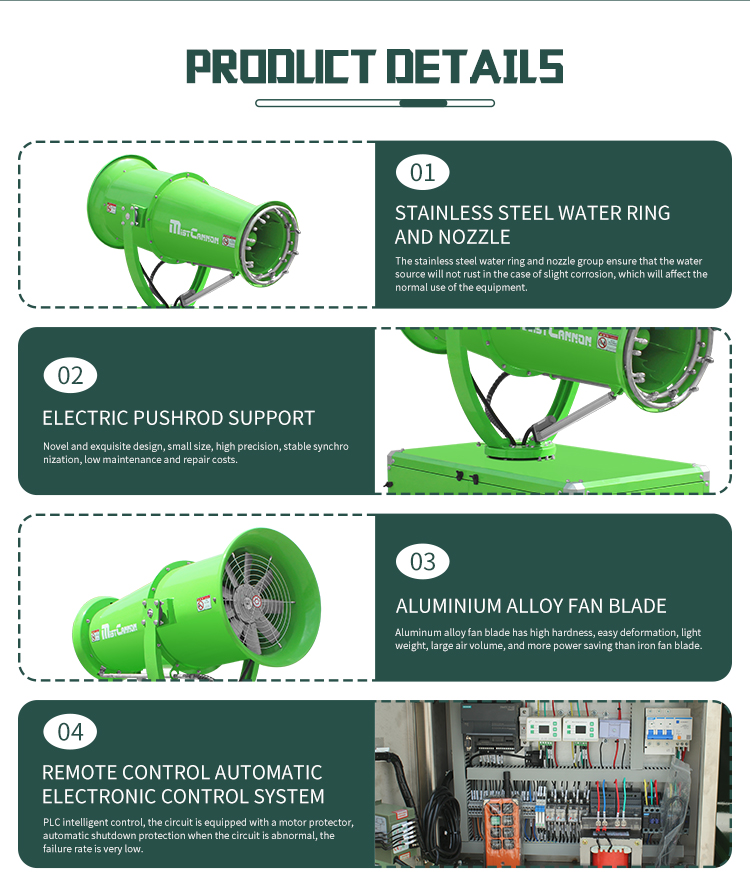

The fog cannon machine adopts double-ring stainless steel 24 nozzles to ensure a larger fog volume, the fan motor power can be selected according to the demand, ranging from 2-7.5kW, to meet the demand for different ranges, the pitch adopts electric actuator to realize the pitch angle of -5-35 degrees, and the left and right rotation adopts the worm gear reducer motor, to realize the rotation angle of 0-340 degrees.

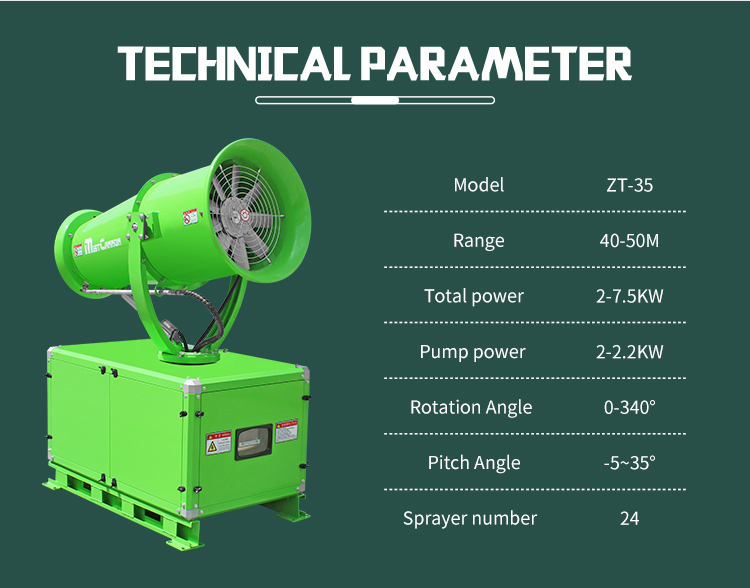

| Model | Quiet Wind Range
(m) |
Fan power
(kw) |
Water pump power
(kw) |
Total
power (kw) |
Pitch angle
(conventional) |
Rotation angle | Nozzles17 | Noise at 20 meters (dB) | Weight
(kg) |
Size | ||
| Split | Box | Standard | Center
(optional) |
(mm) | ||||||||
| ZT-20 | 20-25 | 2-1.5 | 2-1.1 | ≤3 | -5-35° | -10-40° | 0-350° | single12 | 11 | ≤60 | 260 | 1300*720*1642 |
| ZT-30 | 25-35 | 2-2.2 | 2-1.5 | ≤5 | -5-35° | -10-40° | 0-350° | single12 | 11 | ≤65 | 290 | 1300*700*1700 |
| ZT-35 | 35-40 | 2-3 | 2-2.2 | ≤6 | -5-35° | -10-40° | 0-350° | single12 | 11 | ≤65 | 330 | 1300*800*1865 |
| ZT-40 | 40-50 | 2-7.5 | 2-3 | ≤13 | -5-35° | -5-35° | 0-350° | single24 | 15 | ≤68 | 440 | 1663*1300*2078 |
| ZT-50 | 55-60 | 2-11 | 2-3 | ≤16 | -5-35° | -5-35° | 0-350° | single24 | 15 | ≤68 | 530 | 1725*1555*1657 |
| ZT-60 | 60-70 | 2-15 | 2-4 | ≤21 | -5-35° | -5-35° | 0-350° | single30 | 15 | ≤75 | 640 | 1930*1300*2181 |
| ZT-70 | 70-80 | 2-22 | 2-5.5 | ≤30 | -5-35° | -5-35° | 0-350° | single36 | 31 | ≤75 | 850 | 2190*1750*1720 |
| ZT-80 | 75-85 | 2-30 | 2-5.5 | ≤37 | -5-35° | -5-35° | 0-350° | single46 | 31 | ≤80 | 960 | 2500*2040*2111 |
| ZT-90 | 80-90 | 4-37 | 2-7.5 | ≤46 | -5-45° | -5-45° | 0-350° | Double70 | 31 | ≤75 | 1580 | 2580*1990*2462 |
| ZT-100 | 90-100 | 4-45 | 2-7.5 | ≤55 | -5-45° | -5-45° | 0-350° | Double70 | 31 | ≤80 | 1610 | 2985*2170*2229 |
| ZT-110 | 100-110 | 4-55 | 2-11 | ≤68 | -5-45° | -5~35° | 0-350° | Double100 | 31 | ≤80 | 1850 | 2990*2170*2300 |
| ZT-120 | 100-120 | 4-75 | 2-15 | ≤92 | -5-45° | -5~35° | 0-350° | Double110 | 31 | ≤85 | 2350 | 3336*2480*2636 |
| ZT-140 | 110-140 | 4-75 | 2-18.5 | ≤96 | -5-45° | -5~35° | 0-350° | Double120 | 31 | ≤90 | 2850 | 3400*2480*2636 |
