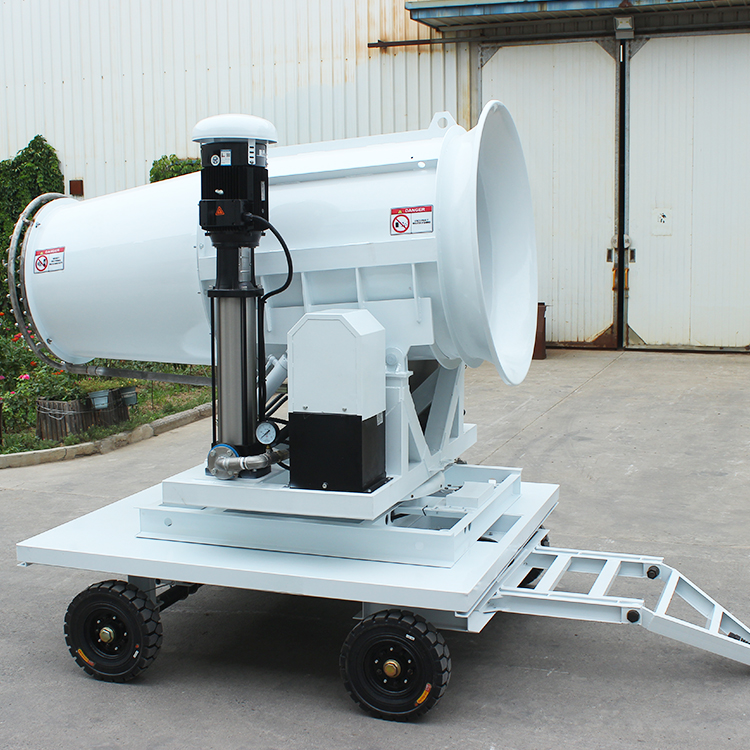

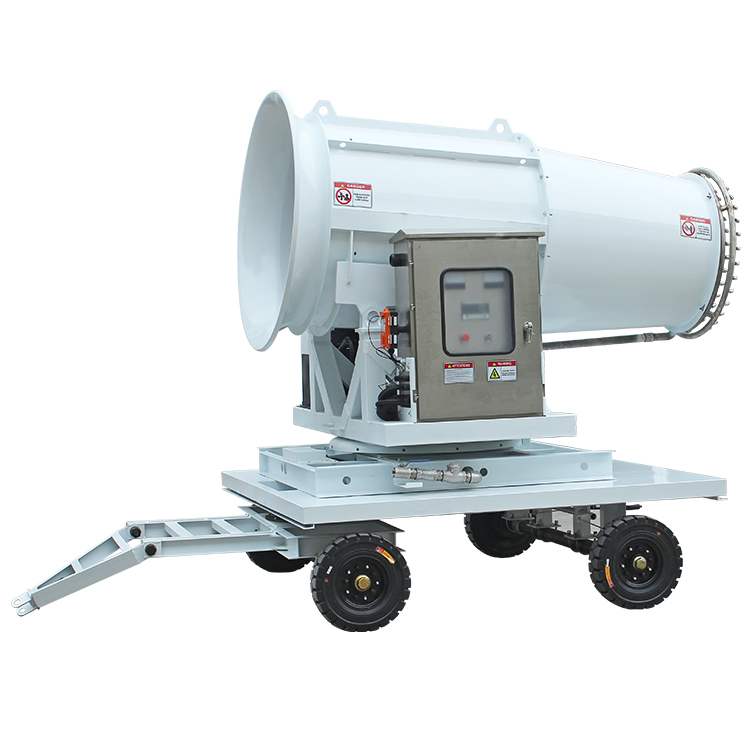

DUST TRAILERTYPE FOG CANNON ZT-90

DUST TRAILERTYPE FOG CANNON ZT-90

The 90-meter mobile dust control fog cannon can be easily moved between different operating locations without the restriction of a fixed location to meet the dust reduction needs of different places, such as city roads, construction sites, material yards, harbors, etc., with wide applicability. Adopting advanced automatic control system, it can realize unattended automatic operation, adjusting the spraying parameters according to the actual demand to ensure uniform and consistent spraying effect. The operator can control the fog cannon by remote control or program settings, so that it can spray accurately in a predetermined area, which reduces labor intensity and improves work efficiency.

Model	Quiet Wind Range（m）	Water mist particle diameter（μm）	Coverage area（㎡）	Power （kw）	Pitch angle	Rotation angle	Number of nozzles	Noise at 20 meters （dB）	Weight（kg）
ZT-20	20	30-150	≤1900	≤3	-5~35°	0~340°	12	≤60	260
ZT-30	30	30-150	≤2700	≤5	-5~35°	0~340°	12	≤65	290
ZT-40	40	30-150	≤4800	≤13	-5~35°	0~340°	24	≤68	440
ZT-50	50	30-150	≤7600	≤16	-5~35°	0~340°	24	≤68	530
ZT-60	60	30-150	≤10900	≤21	-5~35°	0~340°	30	≤75	640
ZT-70	70	30-150	≤14900	≤30	-5~35°	0~340°	36	≤75	850
ZT-80	80	30-150	≤19500	≤37	-5~35°	0~340°	46	≤80	960
ZT-90	90	30-150	≤24700	≤46	-5~35°	0~340°	70	≤80	1580
ZT-100	100	30-150	≤30500	≤55	-5~35°	0~340°	70	≤80	1610
ZT-110	110	30-150	≤36900	≤68	-5~35°	0~340°	100	≤80	1850
ZT-120	120	30-150	≤43900	≤92	-5~35°	0~340°	110	≤85	2350
ZT-140	140	30-150	≤59800	≤96	-5~35°	0~340°	120	≤90	2850
