FOGGING CANNON MACHINE

FOGGING CANNON MACHINE

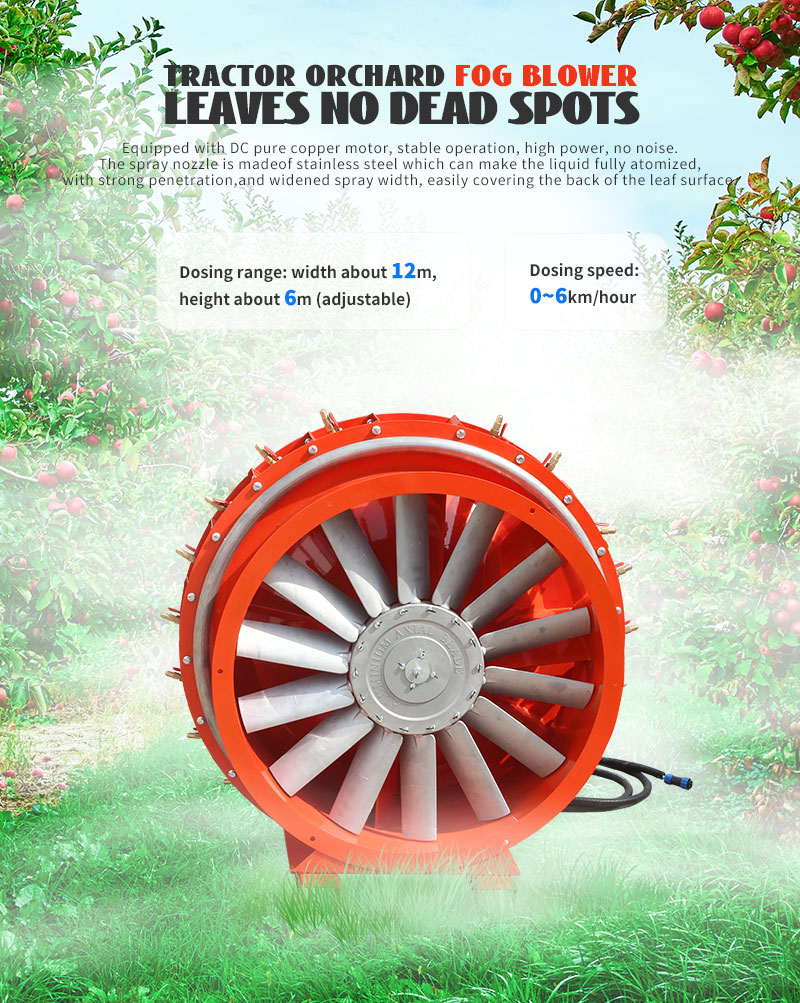

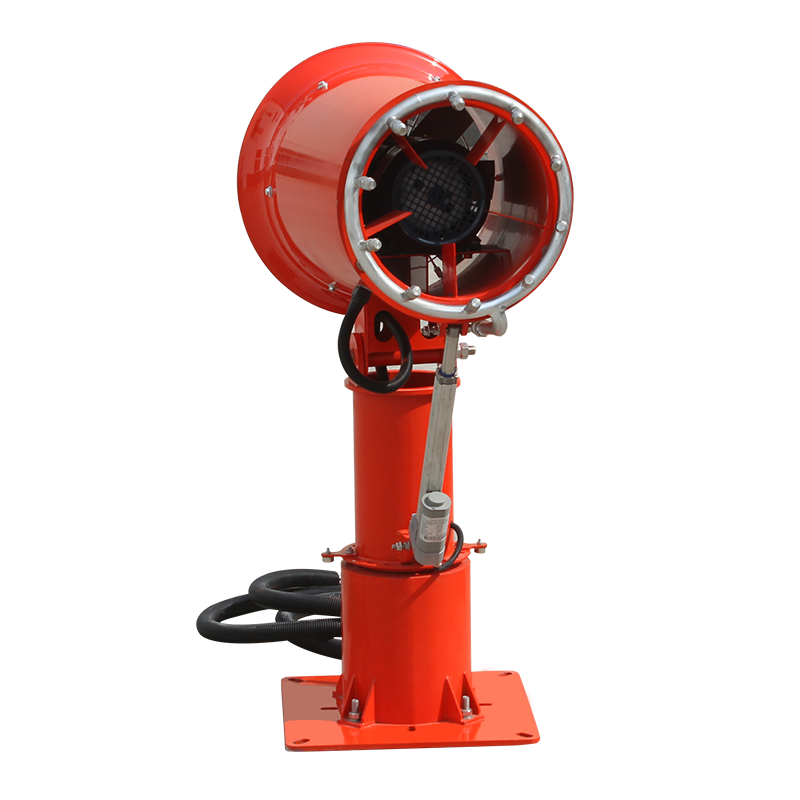

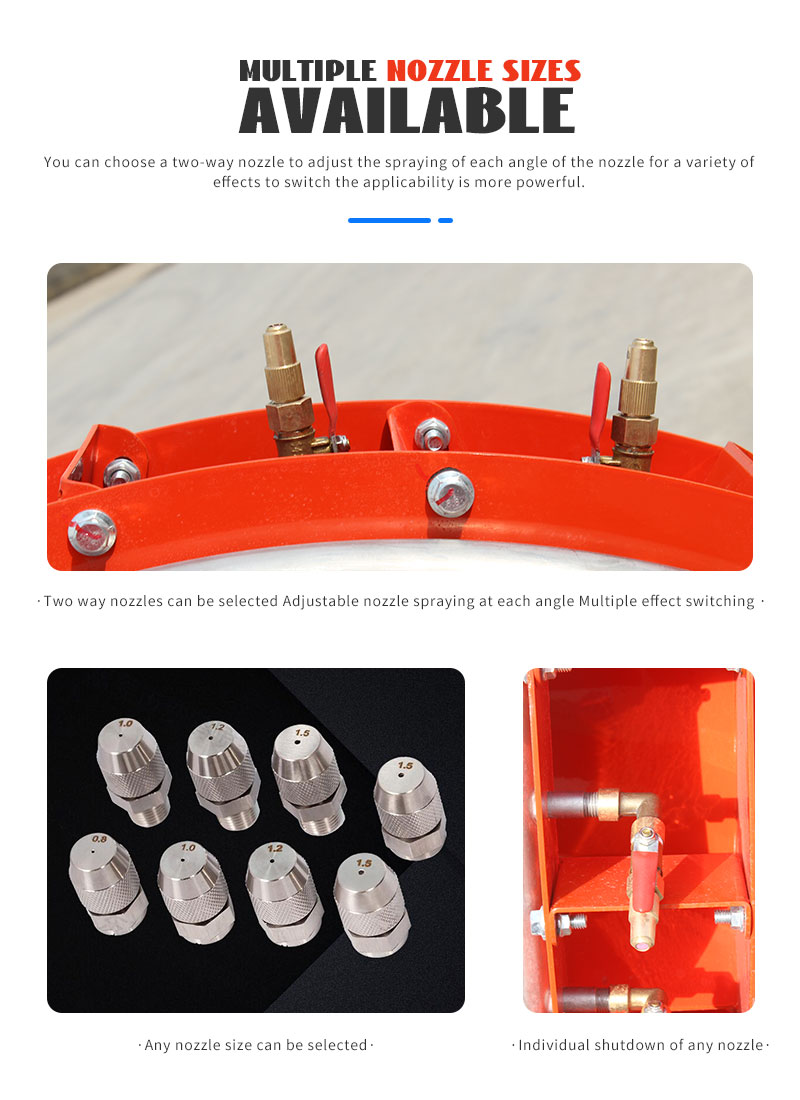

The wind-fed dosing fog cannon machine, mainly used for pesticide spraying, can spray a large area in a short period of time, reduce labor costs, higher efficiency, equipped with DC pure copper motor, stable operation, high power, no noise. The nozzle is made of stainless steel can make the liquid fully atomized, strong penetration, widened spray width, easy to cover the back of the leaf foliage, the dosing range is about 12 meters wide and 6 meters high, can also be adjusted according to the situation.

Model	Quiet Wind Range（m）	Water mist particle diameter（μm）	Coverage area（㎡）	Power （kw）	Pitch angle	Rotation angle	Number of nozzles	Noise at 20 meters （dB）	Weight（kg）	Size（mm）
ZT-20	20	30-150	≤1900	≤3	-5~35°	0~340°	12	≤60	260	1200*700*1700
ZT-30	30	30-150	≤2700	≤5	-5~35°	0~340°	12	≤65	290	1200*700*1700
ZT-40	40	30-150	≤4800	≤13	-5~35°	0~340°	24	≤68	440	1530*940*1970
ZT-50	50	30-150	≤7600	≤16	-5~35°	0~340°	24	≤68	530	1725*940*2020
ZT-60	60	30-150	≤10900	≤21	-5~35°	0~340°	30	≤75	640	1930*1200*2122
ZT-70	70	30-150	≤14900	≤30	-5~35°	0~340°	36	≤75	850	2190*1200*2342
ZT-80	80	30-150	≤19500	≤37	-5~35°	0~340°	46	≤80	960	2500*1400*2580
ZT-90	90	30-150	≤24700	≤46	-5~35°	0~340°	70	≤80	1580	2500*1400*2580
ZT-100	100	30-150	≤30500	≤55	-5~35°	0~340°	70	≤80	1610	2865*1600*2700
ZT-110	110	30-150	≤36900	≤68	-5~35°	0~340°	100	≤80	1850	2865*1600*2700
ZT-120	120	30-150	≤43900	≤92	-5~35°	0~340°	110	≤85	2350	3400*1850*2747
ZT-140	140	30-150	≤59800	≤96	-5~35°	0~340°	120	≤90	2850	3400*1850*2747
