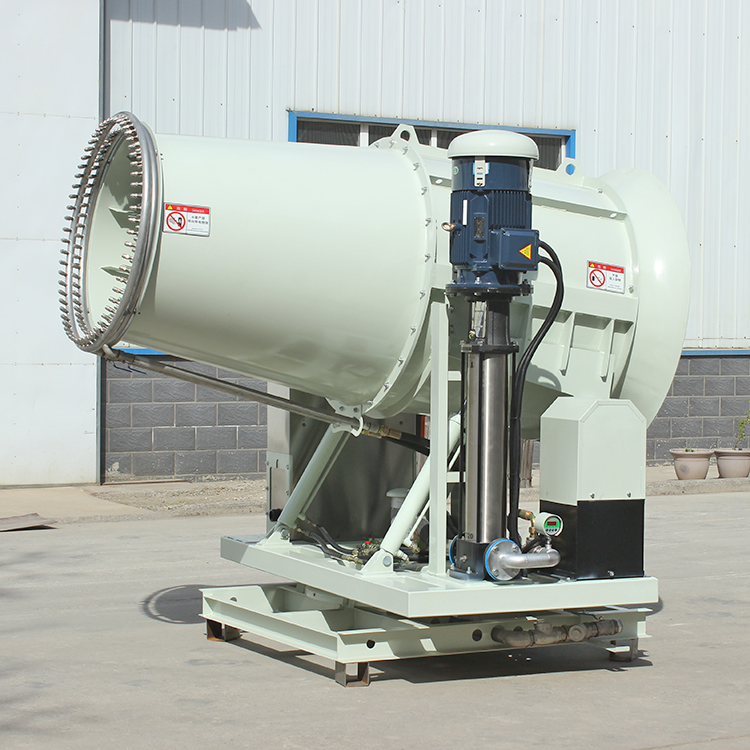

REMOTE DEODORANT FOG CANNON ZT-110

REMOTE DEODORANT FOG CANNON ZT-110

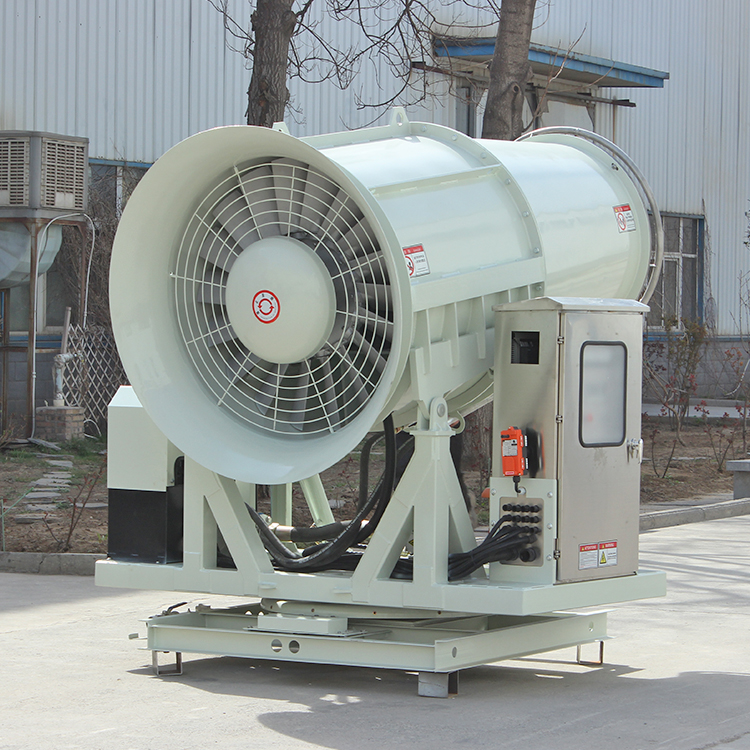

Remote deodorant fog cannon, with double-layer stainless steel electric control box, electric control box with PLC programmable controller, voltage/current protection equipment, industrial model remote control, etc., can achieve 100 metres remote control. The left and right rotation is controlled by three travel switches linkage, and the most middle is the emergency stop button, so that even if the equipment crosses the limits on both sides, there will be no accident of continuous rotation in one direction continuously.

The fog cannon is widely used in sprinkler supporting, coal shed, steel plant, workshop, outdoor in summer, harbour terminal, mine quarry and other places.

Model	Quiet Wind Range（m）	Water mist particle diameter（μm）	Coverage area（㎡）	Power （kw）	Pitch angle	Rotation angle	Number of nozzles	Noise at 20 meters （dB）	Weight（kg）
ZT-20	20	30-150	≤1900	≤3	-5~35°	0~340°	12	≤60	260
ZT-30	30	30-150	≤2700	≤5	-5~35°	0~340°	12	≤65	290
ZT-40	40	30-150	≤4800	≤13	-5~35°	0~340°	24	≤68	440
ZT-50	50	30-150	≤7600	≤16	-5~35°	0~340°	24	≤68	530
ZT-60	60	30-150	≤10900	≤21	-5~35°	0~340°	30	≤75	640
ZT-70	70	30-150	≤14900	≤30	-5~35°	0~340°	36	≤75	850
ZT-80	80	30-150	≤19500	≤37	-5~35°	0~340°	46	≤80	960
ZT-90	90	30-150	≤24700	≤46	-5~35°	0~340°	70	≤80	1580
ZT-100	100	30-150	≤30500	≤55	-5~35°	0~340°	70	≤80	1610
ZT-110	110	30-150	≤36900	≤68	-5~35°	0~340°	100	≤80	1850
ZT-120	120	30-150	≤43900	≤92	-5~35°	0~340°	110	≤85	2350
ZT-140	140	30-150	≤59800	≤96	-5~35°	0~340°	120	≤90	2850
